Hygienic Union Parts

Hygienic Union Parts

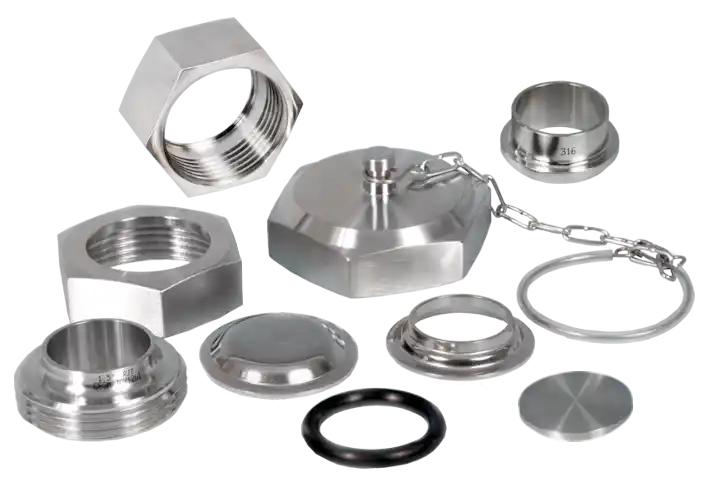

RJT Unions

The most commonly used union in the UK's Food, Beverage and Dairy industries.
The complete union consists of a Male, Liner, Seal and Nut.
We also stock Pressed Blanks, Blank Nuts c/w Chain, Reducing Liners and Spanners.
Males, Liners and Blanks are 316/L material and the Nuts are 304 material.
Seals are stocked in Nitrile (standard), Viton® and EPDM.
Other materials are available on special order.
Available size range: 1” - 6”

IDF Unions

Also commonly known as ISS Unions. The complete union consists of a Male, Liner, Seal and Nut.
We also stock Machined Blanks and Spanners.
Males, Liners and Blanks are 316/L material and the Nuts are 304 material. Seals are stocked in Nitrile (standard). Other materials are available on special order.

Available size range: 1” - 4”

SMS Unions

The complete union consists of a Male, Liner, Seal and Nut.
We also stock Machined Blanks and C-Spanners.
Males, Liners and Blanks are 316/L material and the Nuts are 304 material. Seals are stocked in EPDM (standard). Other materials are available on special order.

Available size range: 1” - 4”

Hygienic Union Assembly Parts and Views



RJT Unions

RJT (Ring Joint Type) Unions consist of a male threaded part, an O-shape seal, a pressed liner and a hexagon nut.

RJT Hygienic Union Assembly View

IDF Unions

IDF (International Dairy Federation) Unions consist of a male threaded part, an I-shape seal, a pressed liner and a hexagon nut.

IDF Hygienic Union Assembly View
SMS Unions

SMS (Swedish Manufacturing Standard) Unions are four part unions consisting of a male threaded part, a square shape seal, a liner and a round slotted nut.

SMS Hygienic Union Assembly View


For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
