ball valves

ETG R-1MF

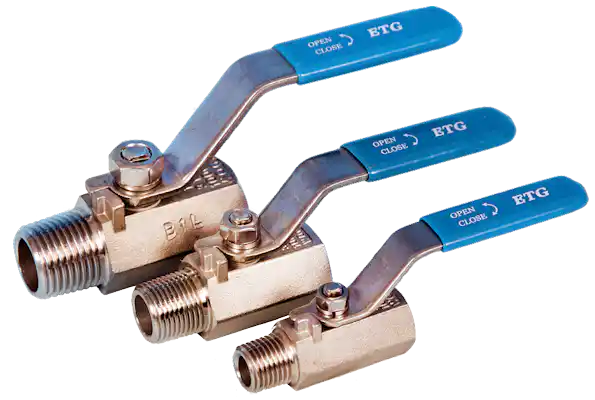

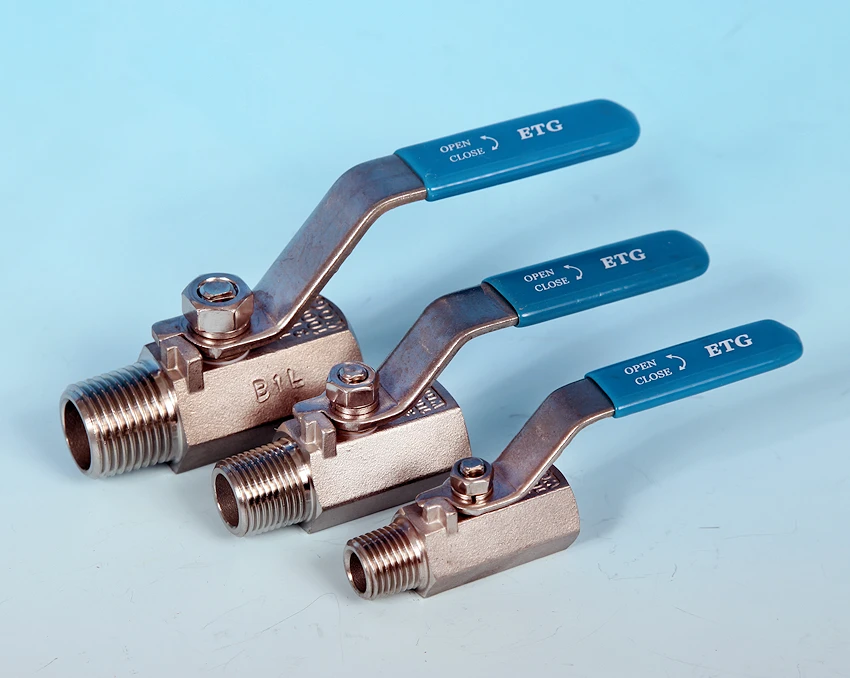

1-Pce Reduced Bore Male x Female Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
BSPT and NPT End connections.
PTFE Seats and Seals. 1000 psi/g Pressure rated.
-20 / + 180 Deg C Temperature rated.

Full material Test Certificates available

Test standard – API 598

Available size range: 1/4” - 1/2”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

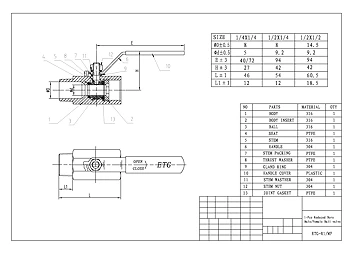

1-Pce Reduced Bore Male x Female Ball Valve ETG R-1MF Enlarge

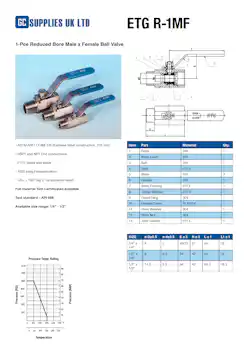

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
