manways

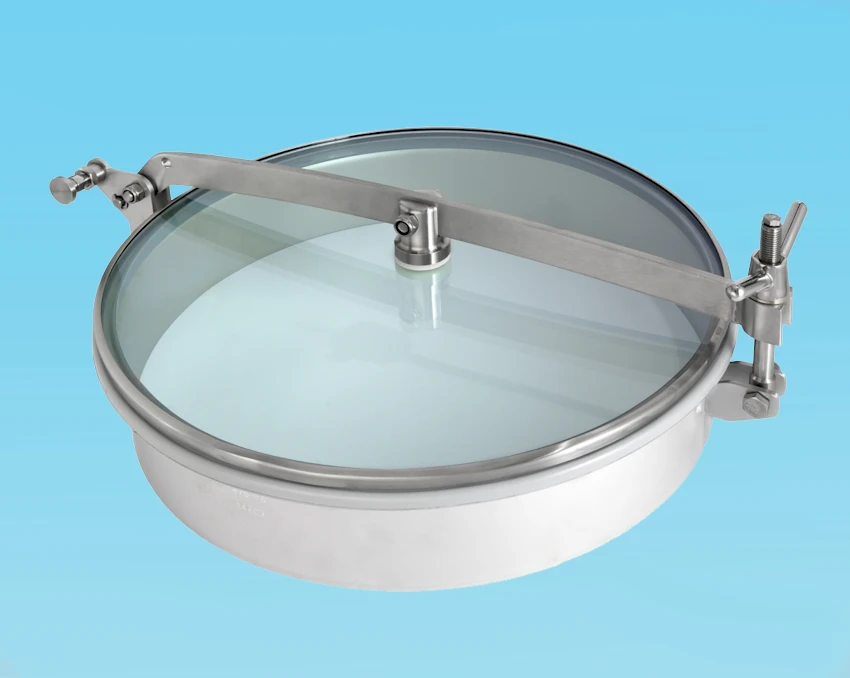

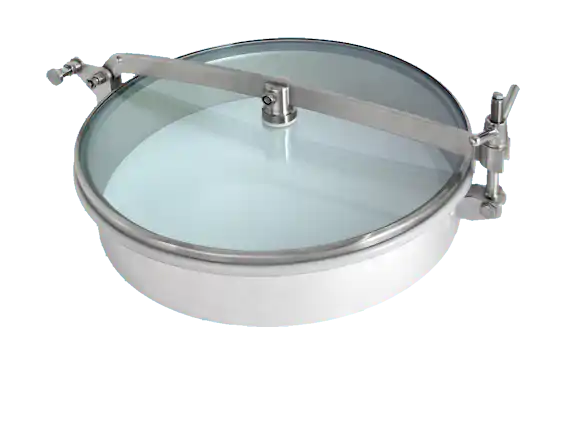

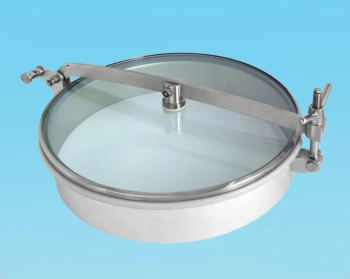

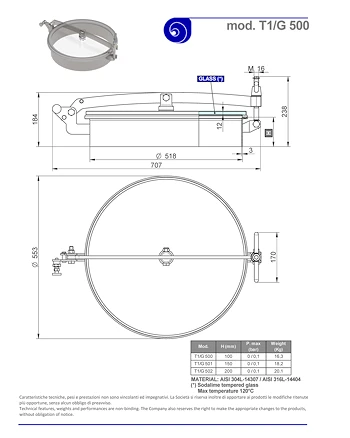

Model T1/G500 304L/Glass

500mm Diameter Low/Non-Pressure Round Manway



304L Stainless Steel construction. EPDM Seal. 100mm high neck.
Back-side and side-swing opening.
Gasket on frame not glued.
Standard with EPDM Gasket G/T500, S.S. Handwheel VI/165A and rear safety pin.
Sodalime Tempered Glass. Max temperature 120°C
0.1 bar/g Max Pressure

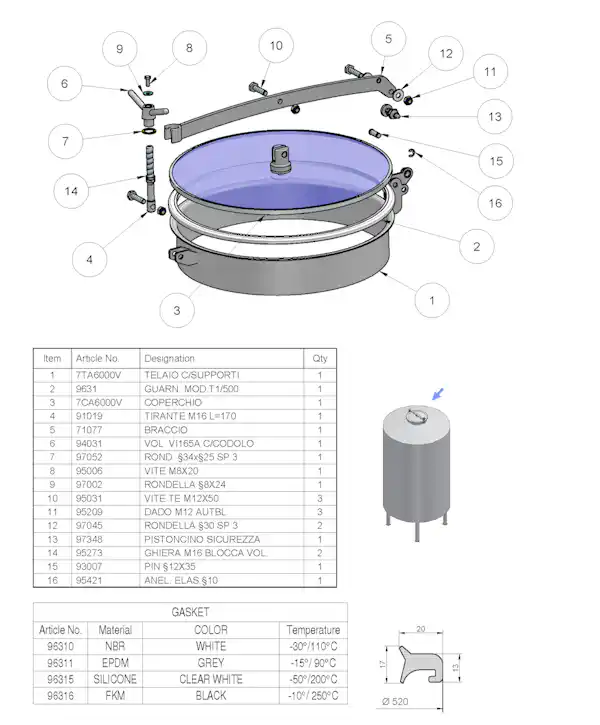

Exploded View

Stainless Steel 500mm Diameter Low/Non-Pressure Round Manway T1/G500 304L/Glass



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
