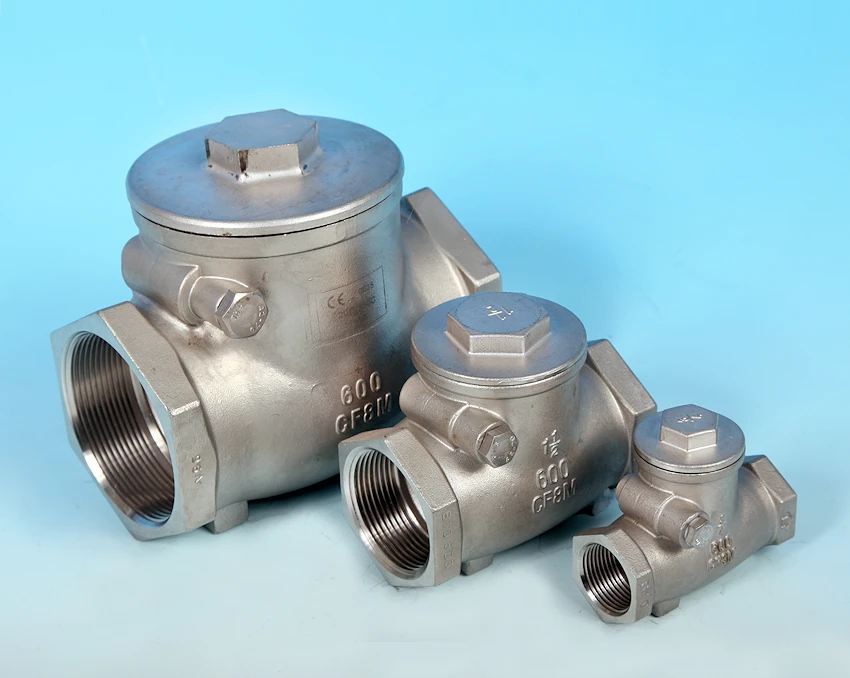

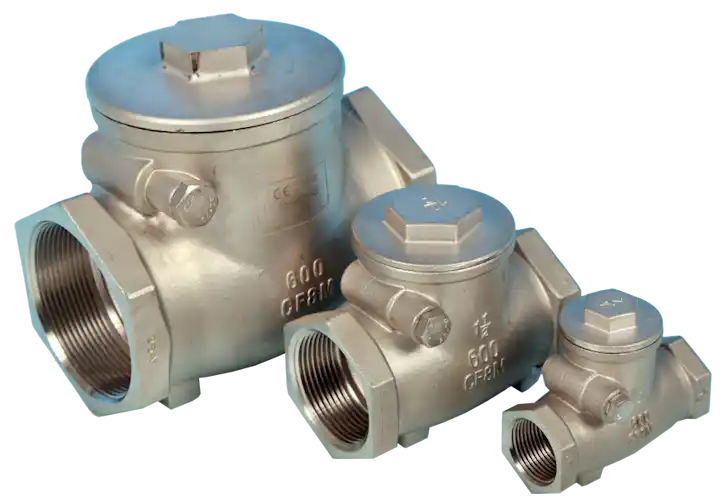

Screwed Swing Pattern Check Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Cap and Hinge Pin Seal.
600 psi pressure rated. -20 / +180 deg C Temp rated.
BSP Screwed end connections.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).

A good all round general purpose Check Valve most suited to
Liquid and Steam duties.
The 600 psi Pressure Rating is relatively unique as most companies are only able to offer a 200 psi unit.
We are able to machine the valve ends to Socket Weld as an optional extra.

Available size range: 1/4” - 3”


Download file Print View View Full Screen Get 7z Get Acrobat Reader

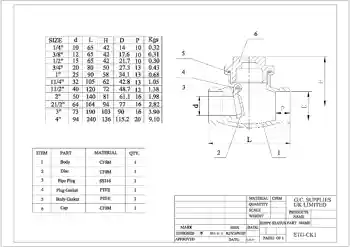

Screwed Swing Pattern Check Valve ETG CK1 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
