ETG DML

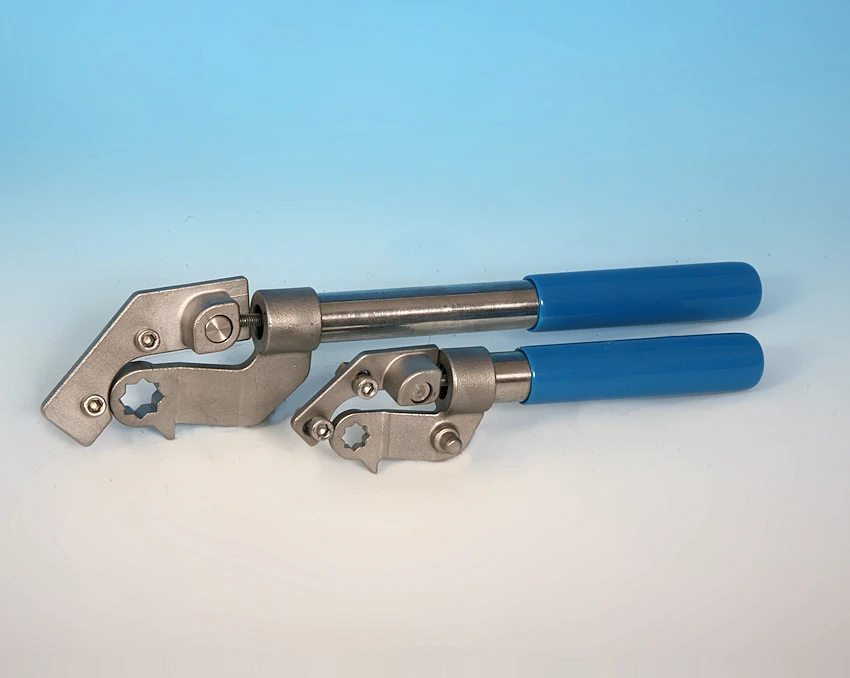

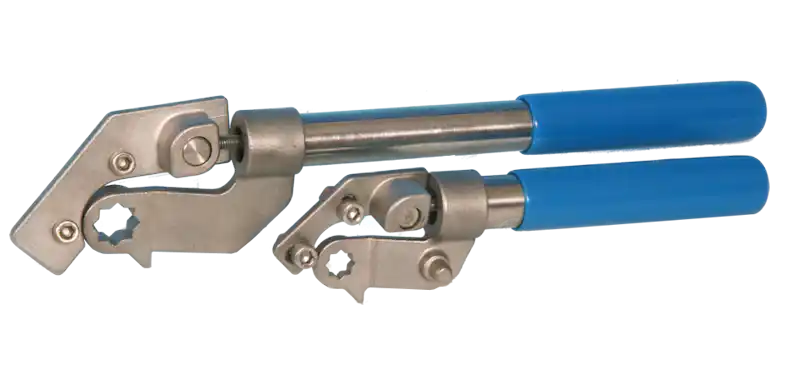

Direct Mount Spring Lever

Spring or “Dead Man's” Lever to fit Direct Mount ISO 5211 Ball Valves with either DIN or ISO Stem arrangements.
CF8 Stainless Steel construction with contained adjustable spring.

Available size range:
F03-F04 x 9mm
F04-F05 x 11mm
F05-F07 x 14mm

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

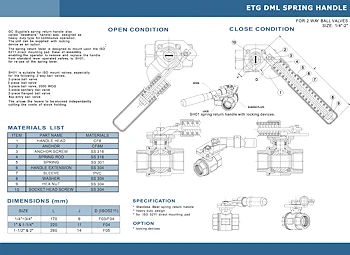

Direct Mount Spring Lever ETG DML Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
