ball valves

ETG F-2/150

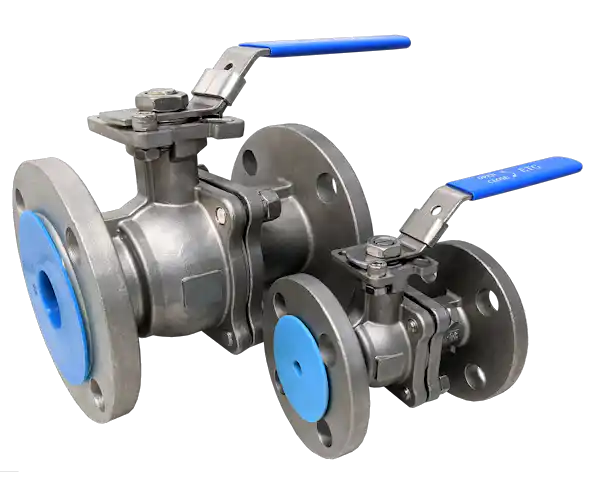

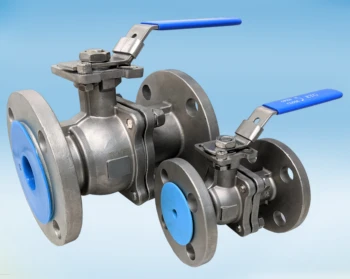

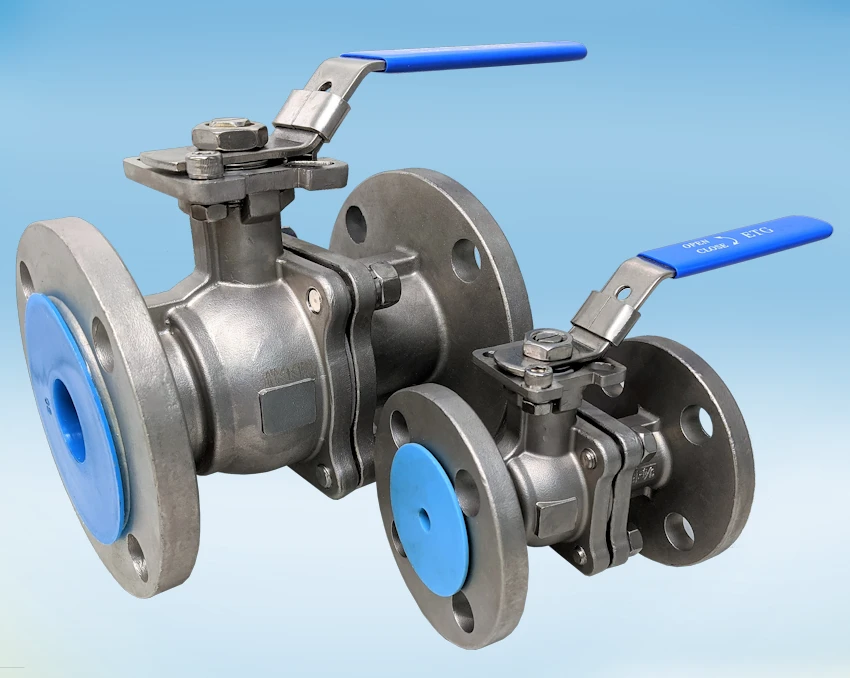

2-Pce Full Bore Flanged ASA 150 Ball Valve lever operated

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Locking Lever.
Firesafe design (not certified).
ISO 5211 Mounting Pad (non-direct mount)
ASME 150# Pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balancing hole in ball/stem slot.
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23/EC

A good quality, cost effective general purpose flanged ball valve suitable for most Liquid and Gaseous duties.
ANSI B16.10 Face to Face dimension.

Full material Test Certificates available

Test standard – API 598

Available size range: 1/2” - 6”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

2-Pce Full Bore Flanged ASA 150 Ball Valve lever operated ETG F-2/150 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
