miscellaneous valves

NTC B/FLY-SS

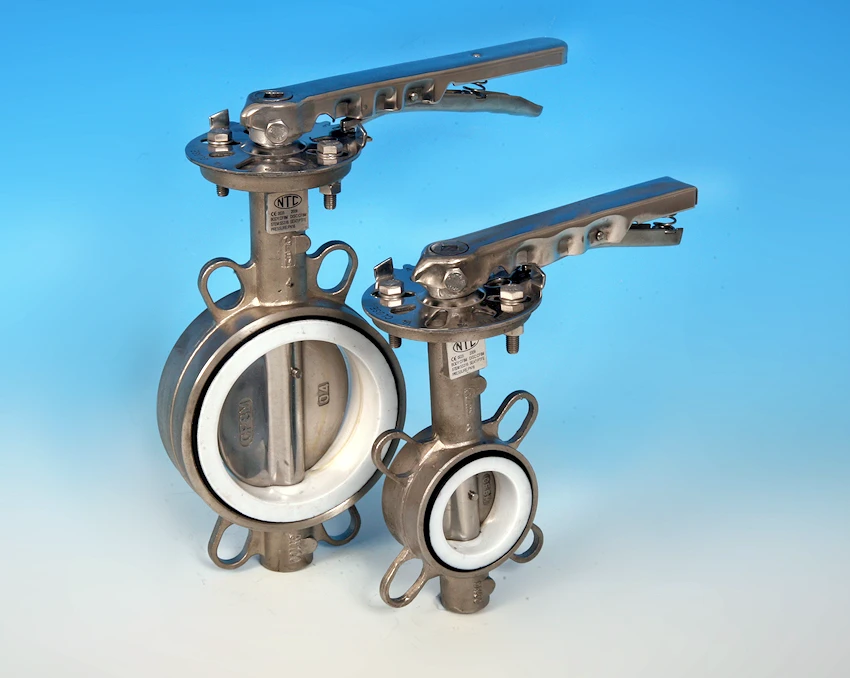

Fully Stainless Steel Wafer Pattern Butterfly Valve

ASTM A351 CF8M 316 Stainless Steel Body and Disc.
PTFE on EPDM Liner. 180 grit polished Disc.
-20 / + 95 Deg C constant temperature rated (+120 deg C intermittent).
Semi Lugged Pattern.

DIN PN10/16 and ANSI 150lb dual fitment body.
Polished 304 Stainless Steel Lever and 10 position Notch Plate.
ISO 5211 Top Mounting Flange and Square Drive for Actuation.

An excellent valve choice for aggressive and corrosive environments or where the aseptic value of Stainless Steel is a requirement.

Available size range: 1 1/2” - 8”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

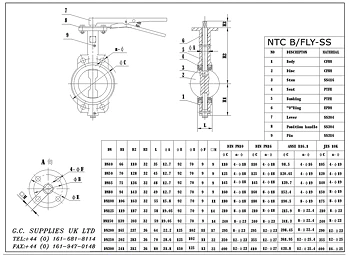

Fully Stainless Steel Wafer Pattern Butterfly Valve NTC B/FLY-SS Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
