NTC KV-L80FS (Screwed Ends)
NTC KV-L81FS (Butt Weld Ends)
NTC KV-L82FS (Socket Weld Ends)

3-Pce Full Bore Heavy Duty Stainless Steel Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 4215® (25% Carbon Filled TFM) Ball Seats, Grafoil Body Seals and Stem Packing. Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.

TFM 4215® is a WRAS approved material.

ISO 5211 Direct Mounting Pad and Square stem for Automation.
Anti-static devices for Ball-Stem-Body. AtEx approved.
Class 800 (2000 psi) pressure rated 1/4” - 1”
Class 600 (1500 psi) 1 1/4” - 2”
Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE Ball Seats
60 Deg V-Ball for modulation duties
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Fabricated Heating Jacket

Upstream Ball and Cavity Relief hole drilled into Ball

Butt-Weld Valve can be modified to make Socket Weld Ends for Metric Pipe Systems

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 800 (1/4" - 1") & 600 (1 1/4" - 2")
Inspection & Testing: MSS SP-110

BSP Ends - BSPP IS0 228/1

Socket-Weld Ends - ASME B16.11

Butt-Weld Ends - ASME B16.25 (Sch 80)

Available size range: 1/4” - 2”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

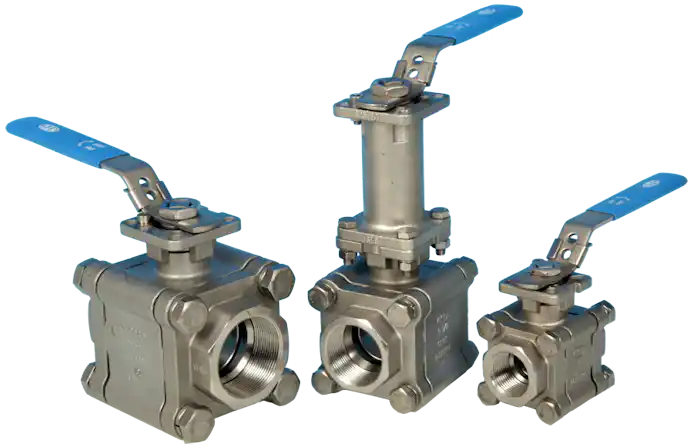

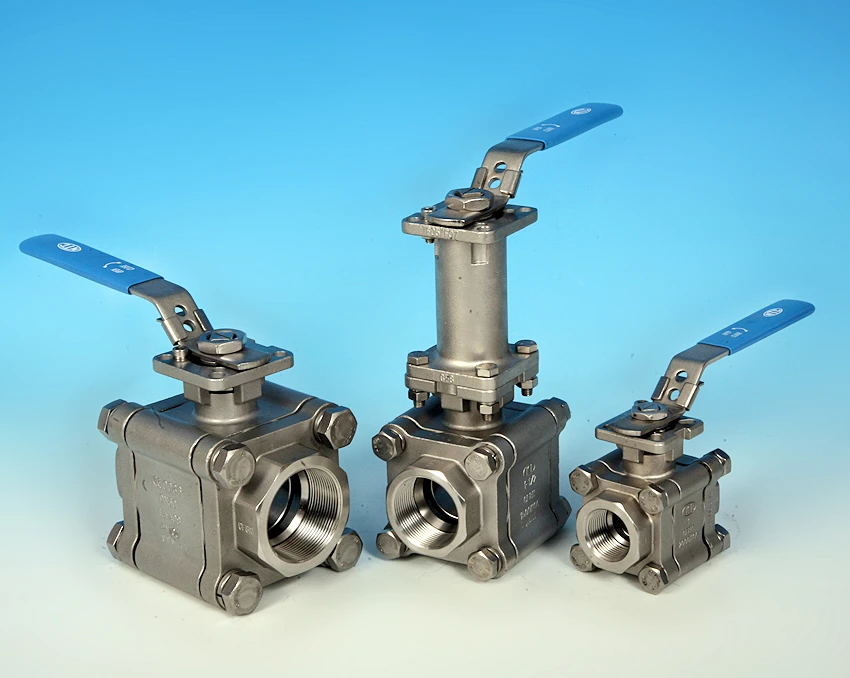

Stainless Steel 3-Pce Full Bore Direct Mount Ball Valve NTC KV-L80FS NTC KV-L81FS NTC KV-L82FS Enlarge picture

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE



For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
