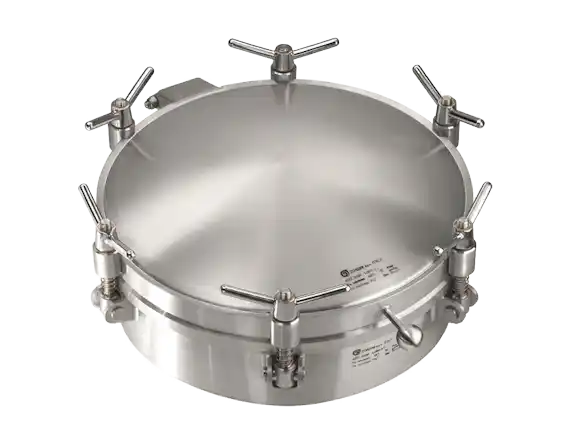

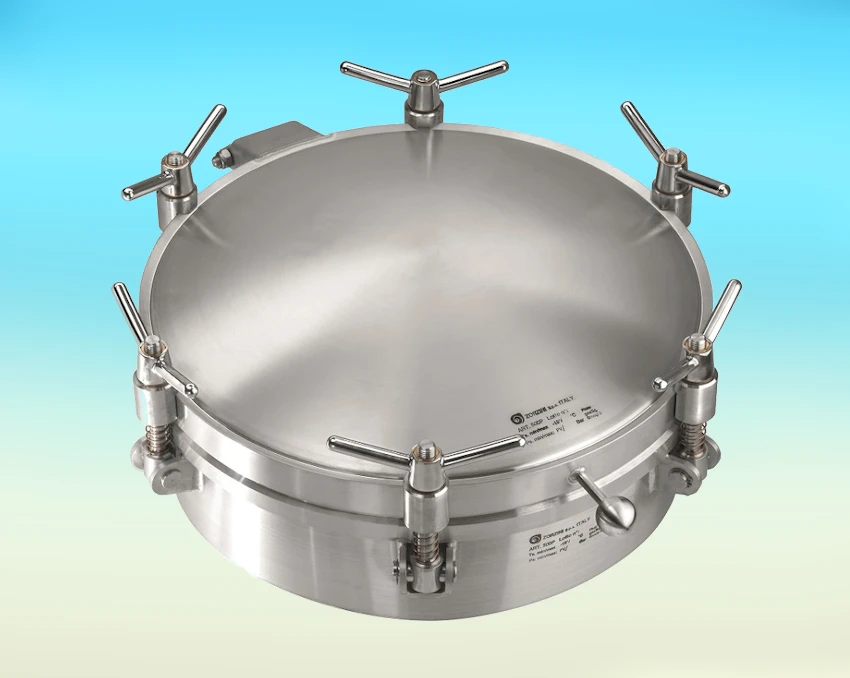

Model 500P 304L

500mm Round Pressure Manway

304L Stainless Steel construction. EPDM Seal. 150mm high neck.
Back-side opening.
Gasket on cover not glued.
Standard with EPDM Gasket G/500P and S.S. Handle VI/165.
0.5 bar/g Max Pressure

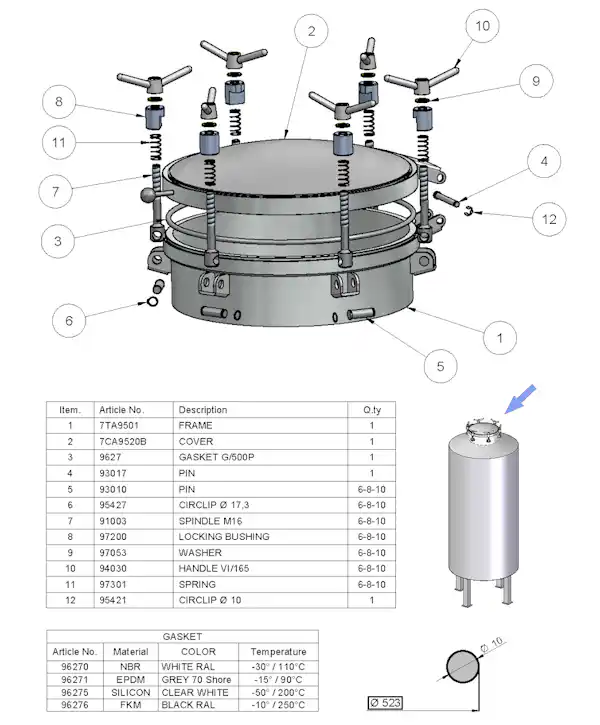

Exploded View

Stainless Steel 500mm Round Pressure Manway 500P 304L
