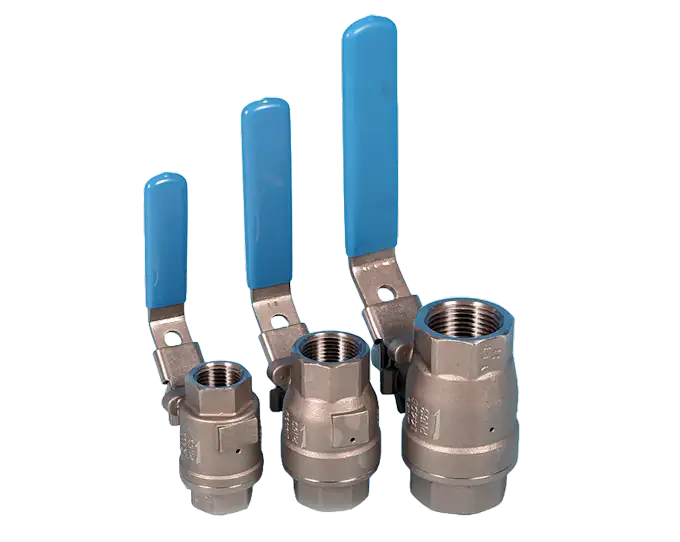

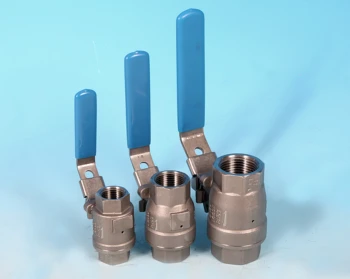

2-Pce Full Bore Venting Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction
PTFE Ball Seats and Seals. BSP Screwed end connections.
Slide Type Lockable Lever.

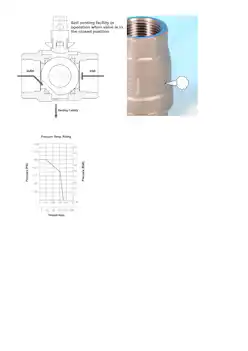

2mm Venting Hole in Ball and Valve Body to safely vent downstream pressure to atmosphere when the valve is in the closed position.

This valve is designed primarily (but not exclusively) for use as a “Safety Feature” on Compressed Air (or other non-hazardous gas) Pipework Systems.

More commonly found available in Nickel Plated Brass, the valve is used to vent downstream line pressure through the base of the valve body to atmosphere.

BSP Ends - BSPP ISO 228/1

Available size range: 1/4” - 2”


Download file Print View View Full Screen Get 7z Get Acrobat Reader

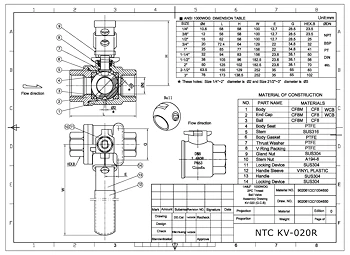

2-Pce Full Bore Venting Ball Valve NTC KV-020R Enlarge Drawing

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

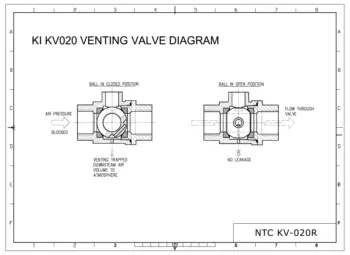

2-Pce Full Bore Venting Ball Valve NTC KV-020R Diagram Operation Diagram
