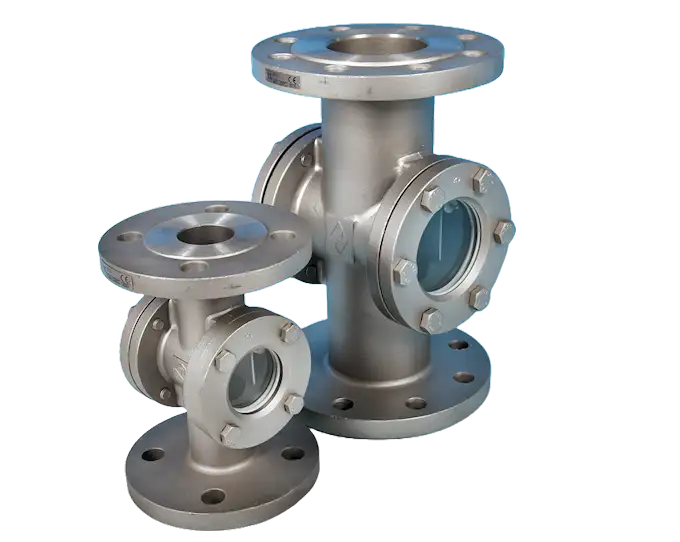

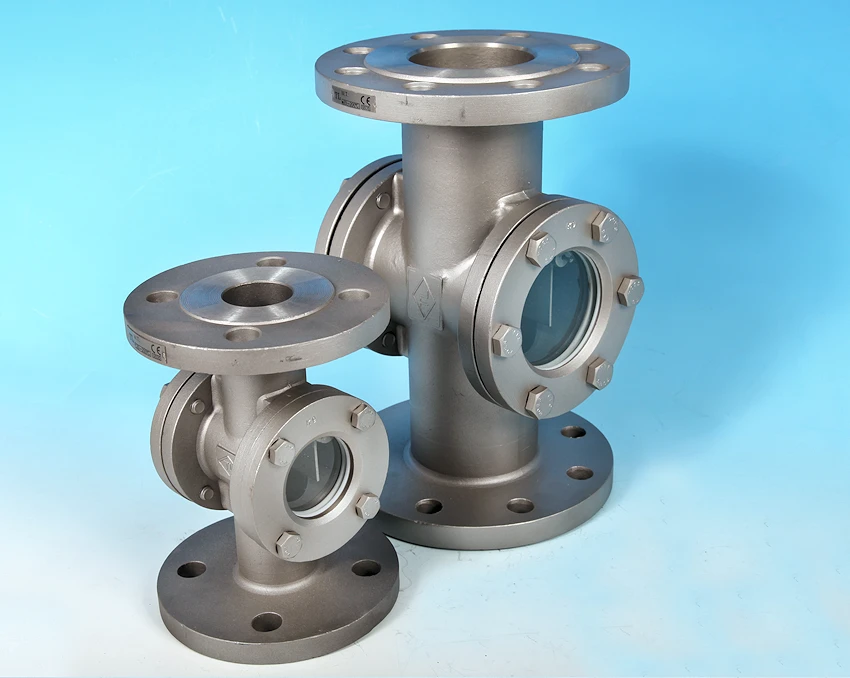

Flanged DIN PN10/16 Double Window Sight Glass
ASTM A351 CF8M 316 Stainless Steel construction.
PTFE Glass Seals. Borosilicate Glass. Swinging Flap to indicate Flow.
Bolted Glass Covers. DIN 3202 F-1 Face to Face dimension
-20 / + 200 Deg C temperature rated. 10 Bar/g pressure rated.
A versatile, cost effective solution where visual flow indication is required within the pipeline construction.
3.1 Material Certificates available.
Test standard – API 598
Available size range: 1” - 6”

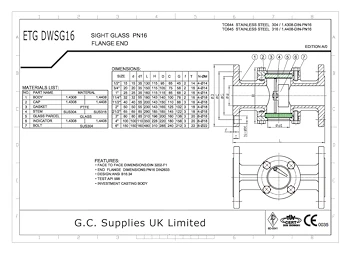

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
