3-way ball valves

ETG F3WL-16 (L-Port)
ETG F3WT-16 (T-Port)

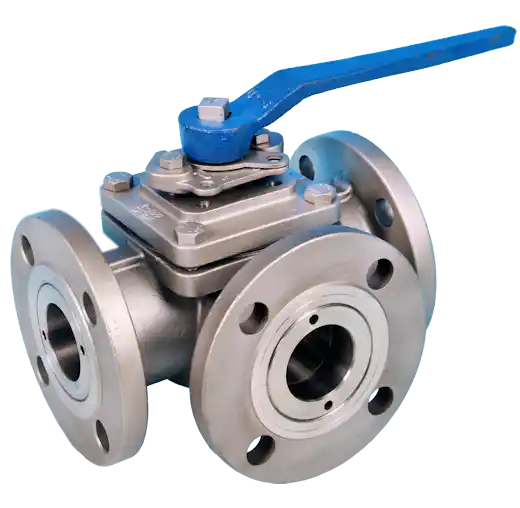

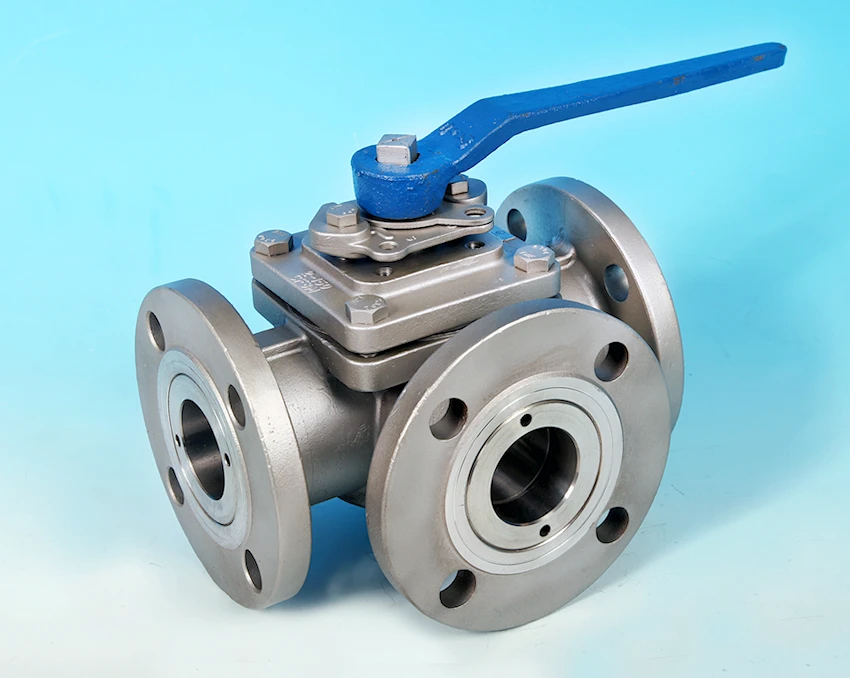

3-Way Flanged DIN PN16 Full Bore Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Single piece Ball and Stem, semi trunnion.
ISO 5211 Mounting Pad (non-direct mount). Adjustable Gland.
Cast Iron Lever with locking device.

Available in both L-Port and T-Port configurations.

The characterising features of this valve are it's semi-trunnion design and only having three ball seats rather than four. These design concepts determine extremely low operating torques therefore major savings can be found in terms of valve automation costs as well as ease of manual operation negating the need for a Gear-Box operator.

Options available:

Heating Jacket can be fitted to base of valve only.

Available size range: 1” - 8”

Actuator Kit required for Automation Actuator Kit required for Automation.

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

3-Way Flanged DIN PN16 Full Bore Ball Valve ETG F3WL-16, ETG F3WT-16 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
