manways

Model TV/400/B 316L

400mm Diameter Low/Non-Pressure Round Manway



316L Stainless Steel construction. EPDM Seal. 65mm high neck.
Back-side and side-swing opening.
Gasket on frame not glued.
Standard with EPDM Gasket G/T400 and Nylon Handwheel MEC/60.
0.0 bar/g Max Pressure

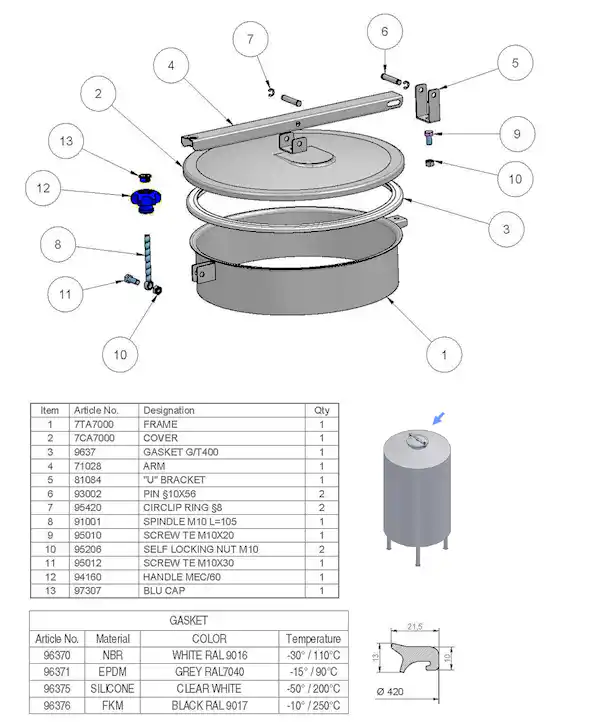

Exploded View

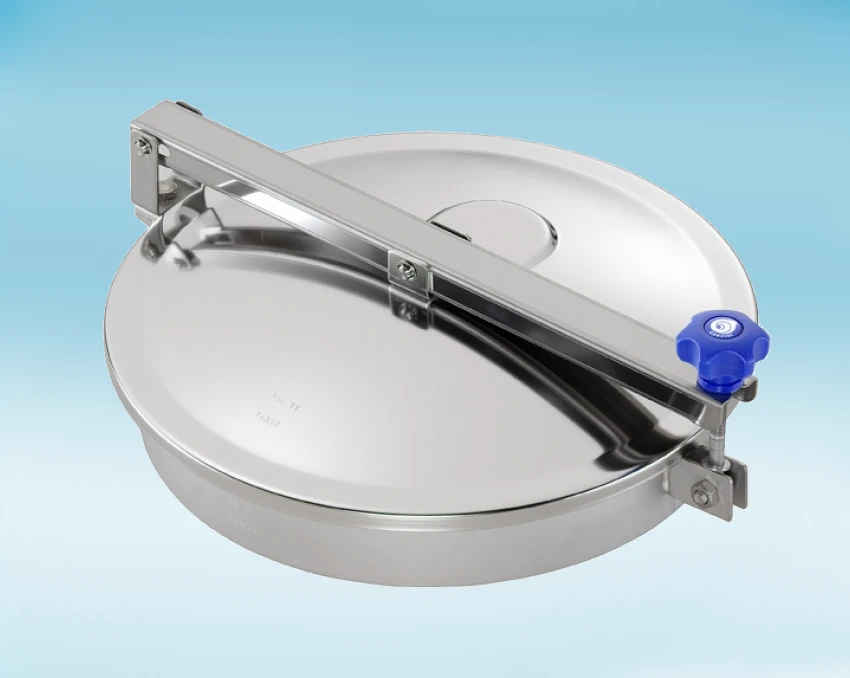

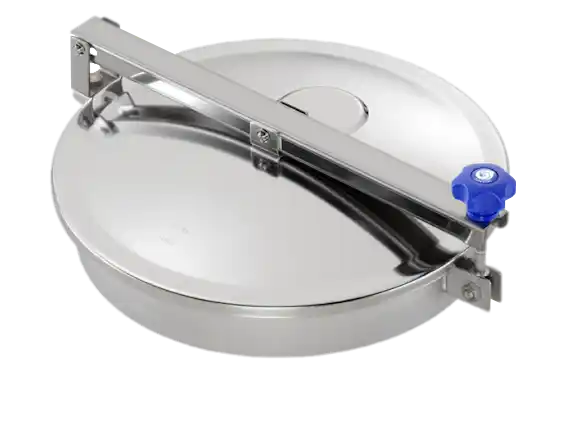

Stainless Steel 400mm Diameter Low/Non-Pressure Round Manway TV/400/B 316L



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
