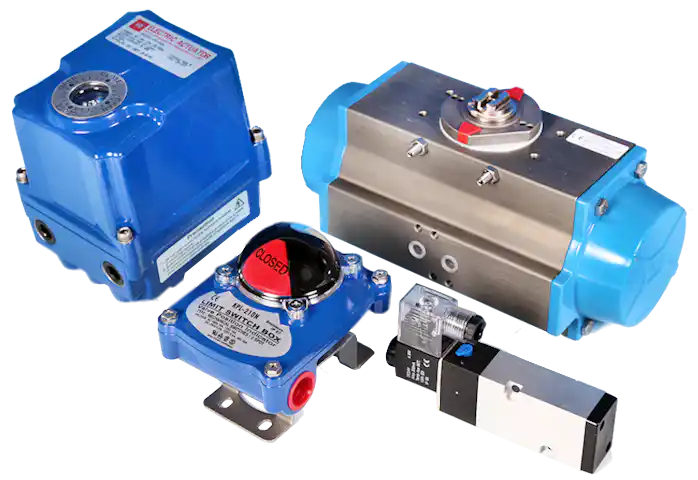

Actuators and Accessories

Pneumatic Actuators

Single Acting (Air/Spring) from 10nm – 700nm
Model SR52 – SR200 from stock. Larger sizes on request.
Double Acting (Air/Air) from 8nm – 1240nm Model DA32 – DA200 from stock. Larger sizes on request. Quarter Turn as standard.
Twin Rack and Pinion Design, Anodised Aluminium Body, Powder Coated Die Cast Aluminium End Caps, Nikel plated Steel Pinion and Die Cast Aluminium Pistons. Atex approved to ll 2GD T6. SIL certified compliant.

Electric Actuators

Double Acting. Manual Override. Quarter Turn. 40Nm Model stocked as standard (HQ004), larger models available upon request. IP67 Weatherproof. 2 x M20 cable
entries. Anti-condensation Heater, four Limit Switches and Visual Position Indicator. Modulating control options available upon request. 24v AC/DC, 100v & 240v voltages stocked as standard.

Switch Boxes

Robust Die Cast Aluminium Body. High Visual Position Indication. IP67 rated. Stainless Steel Shaft and Mounting Bracket. 2 x SPDT V3 Micro Switches, 2 x M20 cable entries and simple switch adjustment. We also stock this Switch Box fitted with either 2 wire IS NJ2-V3-N or 3 wire NBB2-V3-E2 Proximity Sensors.

Namur Mount Pilot Solenoid Valves

Aluminium Body. 3/2 and 5/2 Operation. Manual Override facility.
LED DIN Wiring Plug. Namur Mount. 24V D/C, 110V A/C and 240V A/C voltages stocked as standard. Other voltages available on request. Explosion proof and
Intrinsically Safe also available on request. We offer a free assembly and testing service on all of these products when purchased in conjunction with any of our valve
models.

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

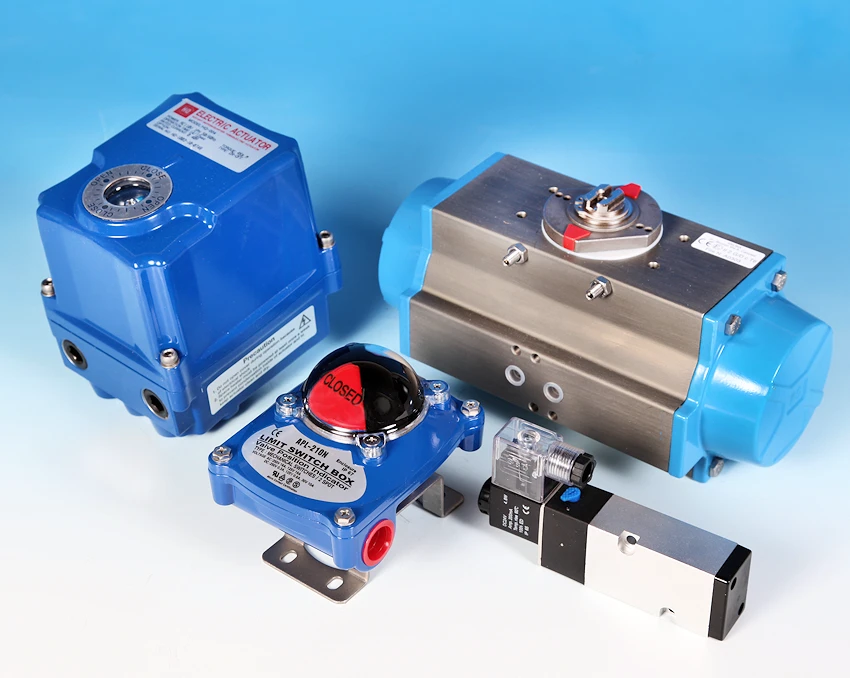

Actuators and Accessories Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
