manways

Model TV/500/B 316L

500mm Diameter Low/Non-Pressure Round Manway



316L Stainless Steel construction. EPDM Seal. 100mm high neck.
Back-side and side-swing opening.
Gasket on the frame not glued.
Standard with EPDM Gasket G/T500 and Blue Nylon Handwheel MEC/80/A.
0.0 bar/g Max Pressure

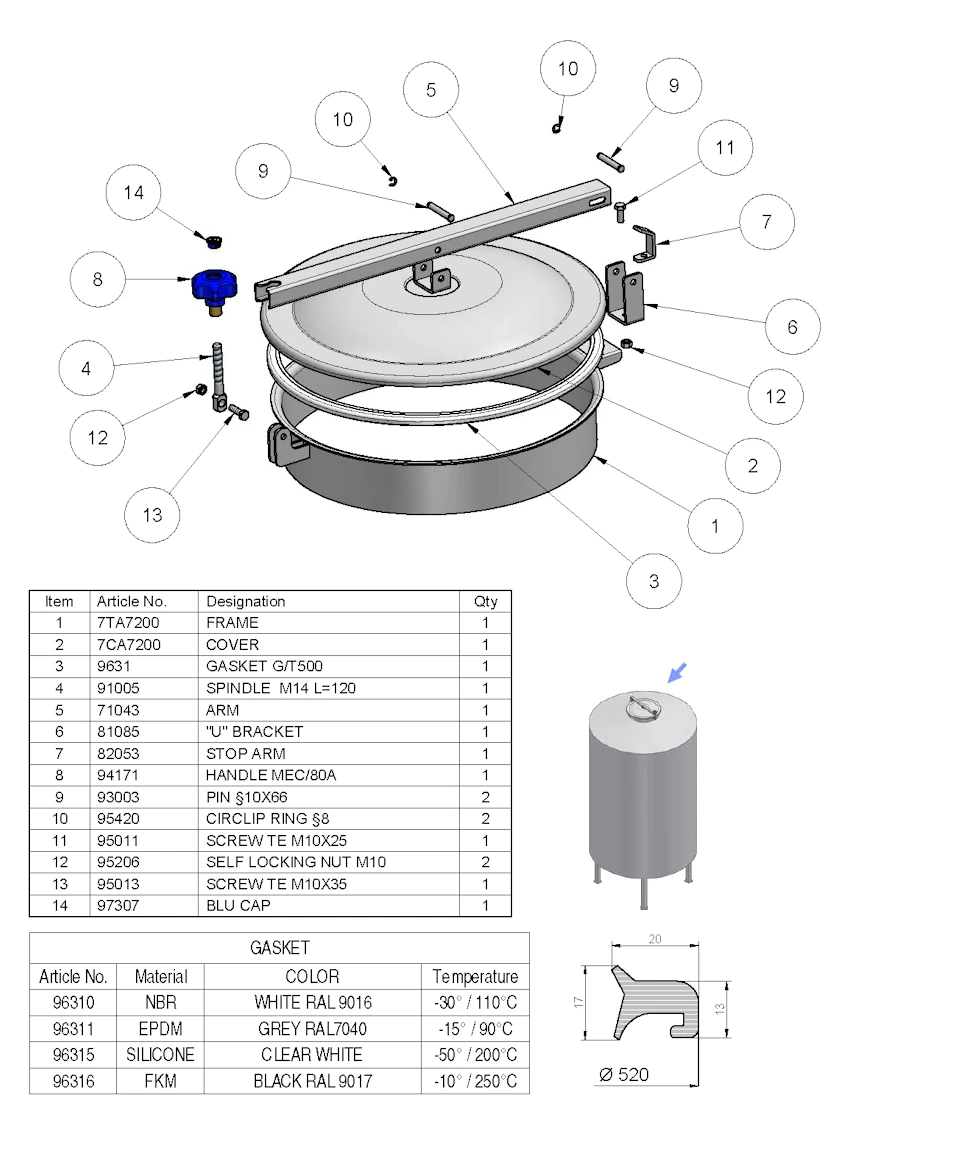

Exploded View

Stainless Steel 500mm Diameter Low/Non-Pressure Round Manway TV/500/B 316L



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
