NTC KV-L80FC (Screwed Ends)
NTC KV-L82FC (Socket Weld Ends)

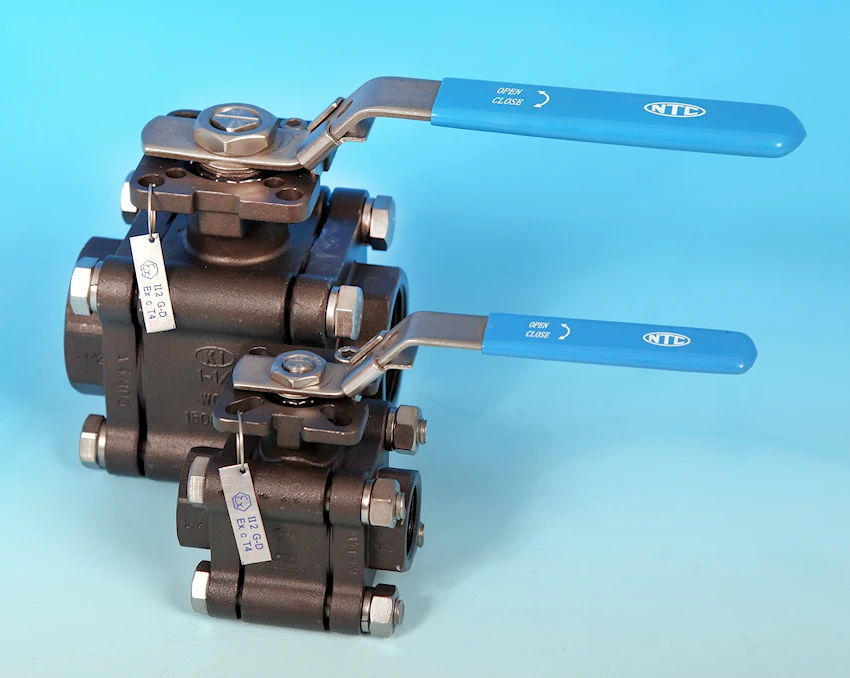

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve

Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497.
ASTM A216 WCB Carbon Steel construction, 316 Trim.
TFM 1600® + 25% Carbon Filled Seats, Grafoil Body Seals and Stem Packing.
Ta-Luft self adjusting stem sealing.
ISO 5211 Direct Mounting Pad and Square stem for Automation.
Anti-static devices for Ball-Stem-Body. AtEx approved.
Class 800 (2000 psi) pressure rated 1/2” - 1”, Class 600 (1500 psi) 1 1/4” - 2”

Options available:

50% S/S Filled PTFE Ball Seats.
60 Deg V-Ball for modulation duties.
100mm high Spindle Extension for Insulation & Steam
Actuation.
Direct Mount Spring Handle/Lever.
Fabricated Heating Jacket.

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

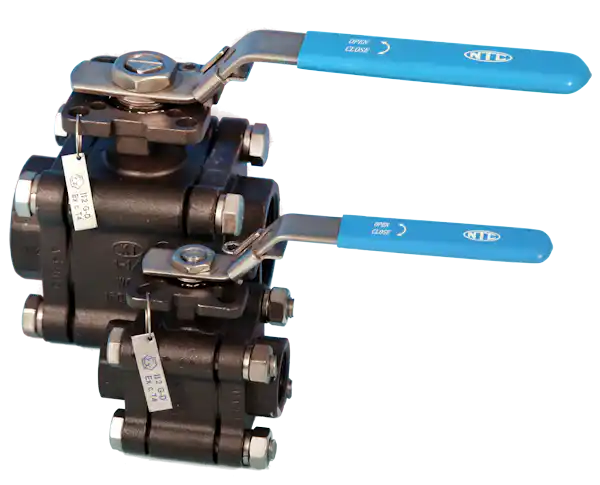

3-Pce Full Bore Heavy Duty Carbon Steel Direct Mount Ball Valve NTC KV-L80FC NTC KV-L82FC Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
