Solenoid Valve Fig ETG SPU225

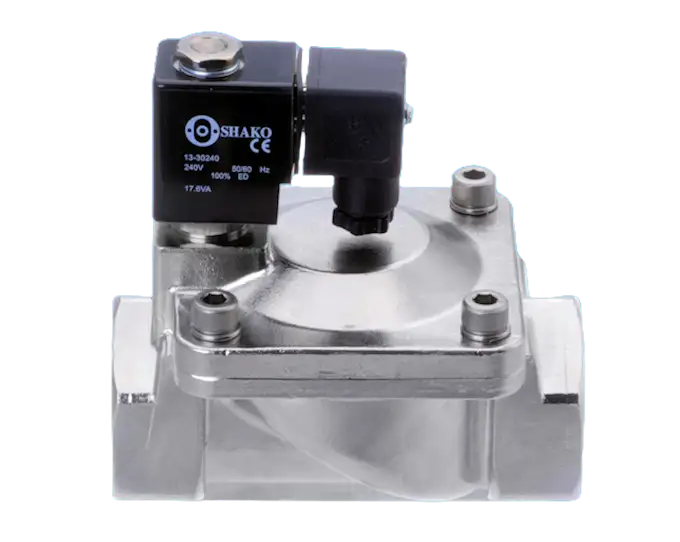

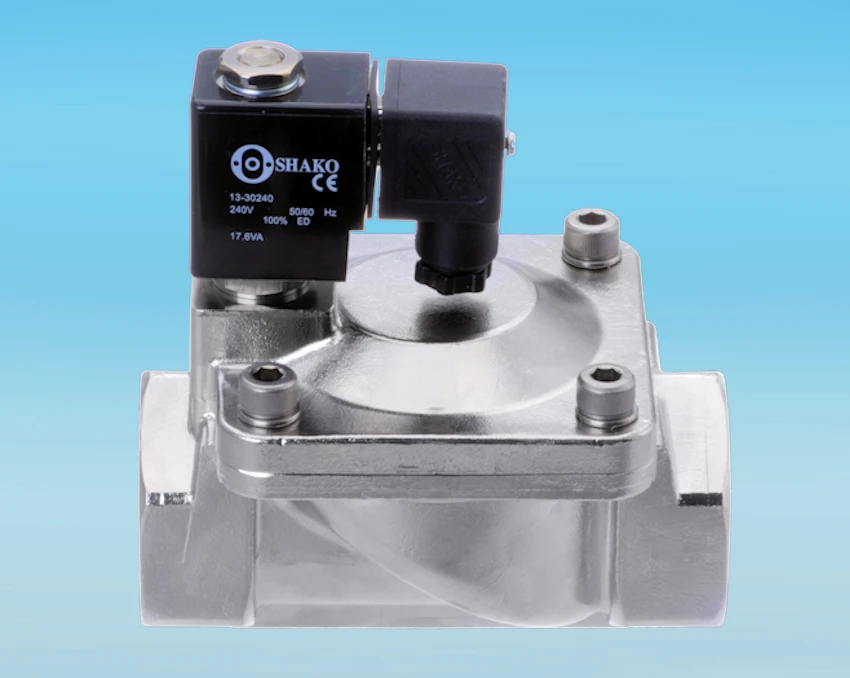

2 Way Stainless Steel Servo Assisted Solenoid Valve

ASTM A351 CF8M 316 Stainless Steel body construction.
FKM Seals and Gaskets (NBR and EPDM available upon request).
Normally closed, energise to open. 50 mSec opening/closing time.
BSP screwed end connections as standard (NPT and Flanged end connections available on request).
0.5 – 15 bar/g operating pressure. 160 deg C maximum working temp.
Suitable for use on Air, Water, Gases and Light Oils.
Available in 24v AC/DC, 110v AC and 240v AC as standard, other voltages are available on request. CE marked. IP65 rated enclosure.
Atex and Explosion Proof Coils available on request.

Please ask our sales office for further details.

Please note: these goods are not held in stock at our
Manchester warehouse but are availble on short lead times.
Please enquire with our sales office.

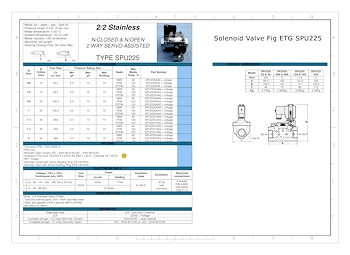

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

2 Way Stainless Steel Servo Assisted Solenoid Valve ETG SPU225 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
