gate and globe valves

ETG GT16

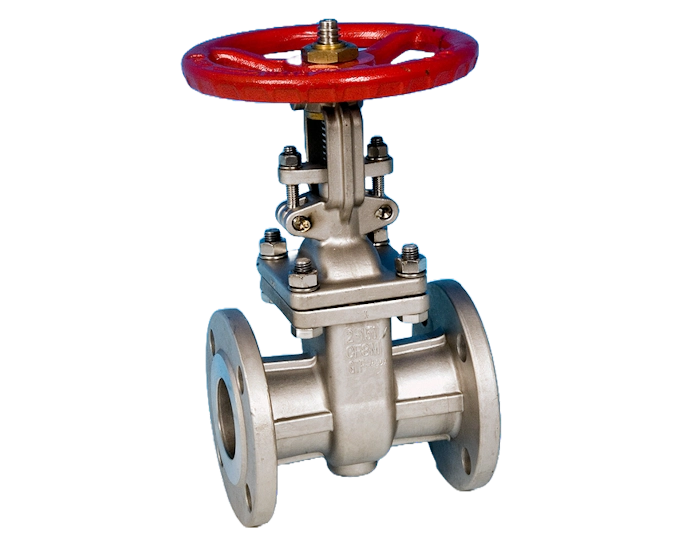

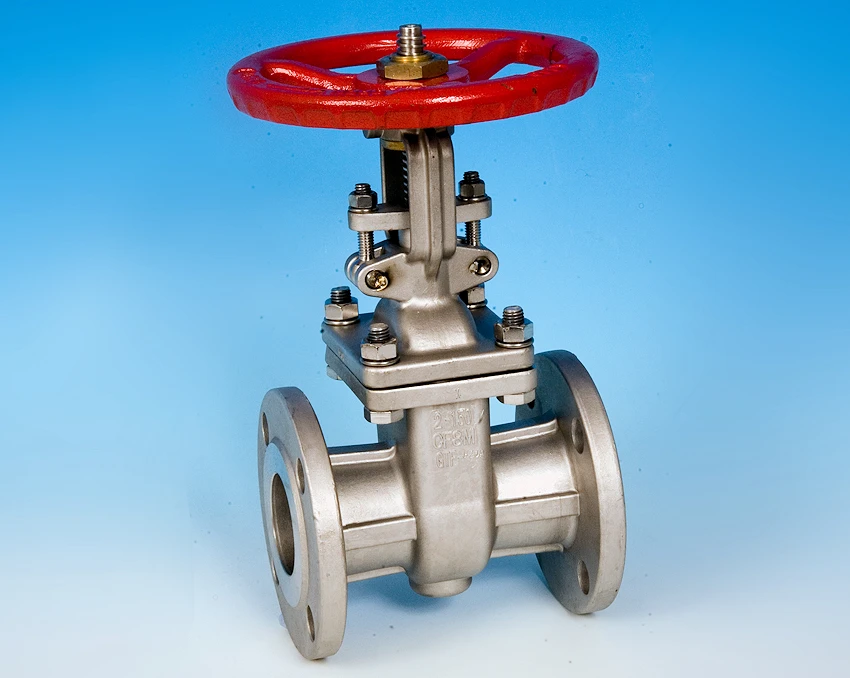

Flanged Pattern Gate Valve DIN PN16

ASTM A351 CF8M 316 Stainless Steel Body, Bonnet and Wedge.
316 Stainless Steel Stem and Trim. Ductile Iron painted Handwheel.
PTFE Gland Packing and Bonnet Seal. Bronze Bush.
Bolted Bonnet, Outside Screw and Yoke. Rising Stem. Solid Wedge.
Face to Face dimensions in accordance with DIN 3202/F1.
16 bar/g pressure rated. -20 / +180 deg C Temp rated.
Flanged DIN PN10/16 end connections.
CE Marked in accordance with the PED 97/23/EC (from 1 1/4”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our DIN PN16 Flanged Gate, Globe, Check and Y-Strainer Valves conform to DIN 3202/F1 face to face dimensions which mean that they are “long pattern” valves and are not to be confused with shorter “ANSI” pattern valves that are available elsewhere.
Design Standard – ANSI B16.34
Test Standard – API 598

Available size range: 1/2” - 8”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

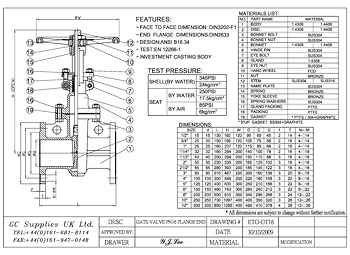

Flanged Pattern Gate Valve DIN PN16 ETG-GT16 Enlarge

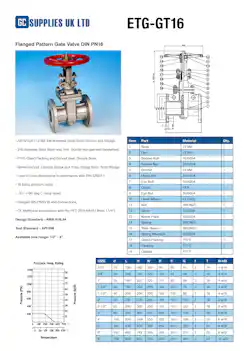

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
