Allen Key Plugs

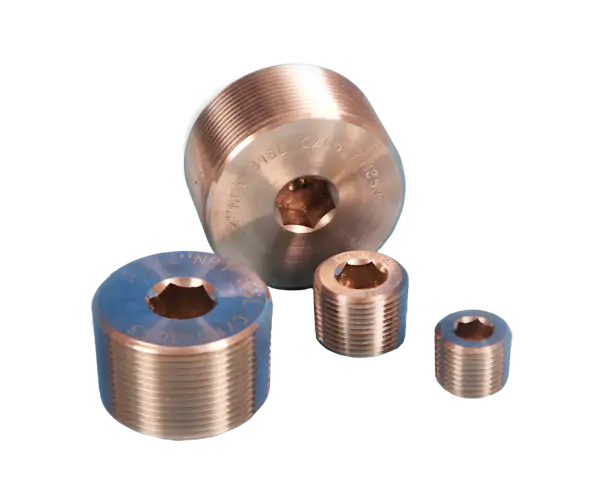

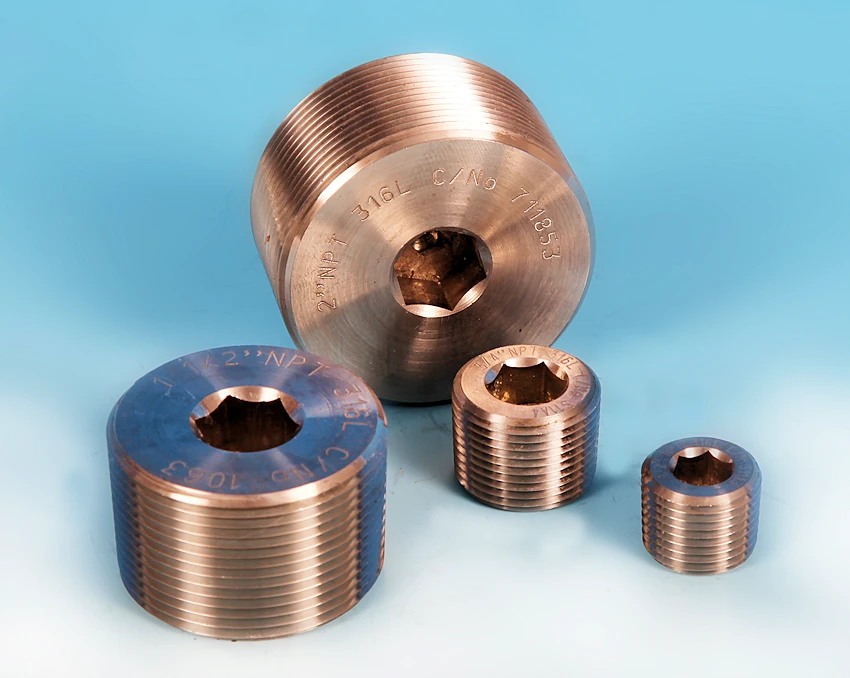

Stainless Steel Hexagon Allen Key Plugs
Also known as "Socket Head Plugs" or "Countersunk Plugs".

ASTM A479 316L Stainless Steel Bar Construction
NPT and BSPT Taper Thread forms available from stock
Threads in accordance with BS21 (ISO 7/1 or EN 10226 R) and ANSI/ASME B.1.20.1
Plugs are generally not manufactured with specific pressure ratings as they are "pressure retaining" and not "pressure containing". Please enquire if you require clarification on a specific duty.
CNC Precision machined from solid bar, not manufactured from castings.

EN 10204 3.1 Material Certification available

Available size range: 1/8" - 2"

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

Allen Key Plugs Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
