ETG-CK16

Swing Pattern Check Valve Flanged BS4504 DIN PN16

ASTM A351 CF8M 316 Stainless Steel Body, Cover and Disc.
316 Stainless Steel Trim.
PTFE Cover Seal. Bolted Cover design.
Face to Face dimensions in accordance with DIN 3202/F1.
16 bar pressure rated. -20 / +200 Temp rated.
Flanged DIN PN10/16 end connections.
CE marked in accordance with the PED 97/23/EC (from 1 1/4”).
Atex compliant.

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our DIN PN16 Flanged Gate, Globe, Check and Y-Strainer Valves conform to DIN 3202/F1 face to face dimensions which mean that they are “long pattern” valves and are not to be confused with shorter “ANSI” pattern valves that are available elsewhere.
Test standard – API 598

Available size range: 1/2” - 8”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

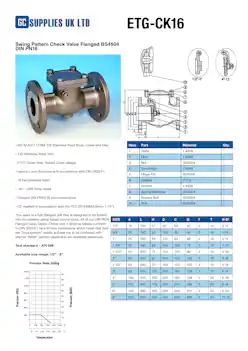

Swing Pattern Check Valve Flanged BS4504 DIN PN16 ETG-CK16 Enlarge
