check valves & strainers

NTC-SPV100

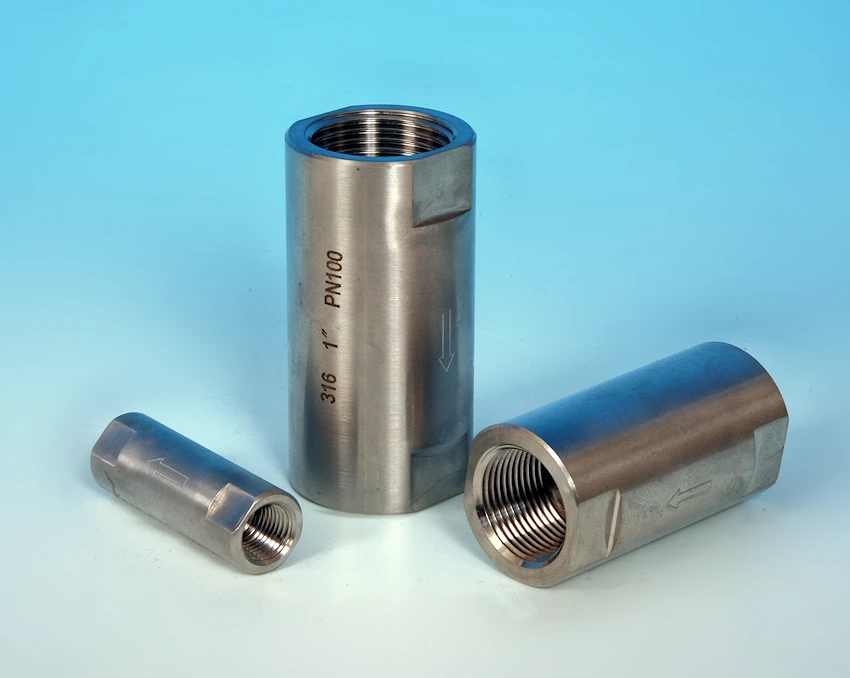

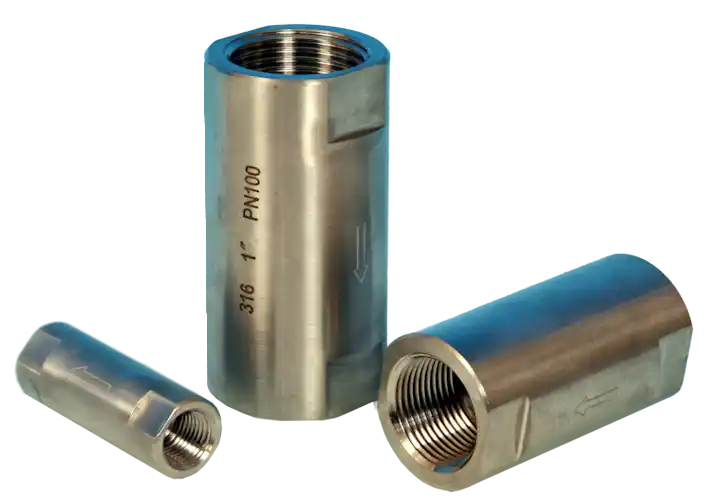

Screwed “Barrel Type” Spring Check Valve

316L Stainless Steel Solid Bar Body Construction.
Viton 'O' Ring Seal.
100 bar pressure rated. -20 / +120 deg C Temp rated.
BSP Screwed end connections.

The “SPV100” is manufactured from solid Stainless Steel Bar making it suitable for much higher pressure applications than the NTC SPV20 Barrel Check Valve.
The valve is ideal for low – medium pressure hydraulic, pneumatic and instrumentation applications where a bubble tight seal is a must.

We are also able to offer this unit as a Double Check Valve with
centre Bleed Port (please ask for details).

Available size range: 1/4” - 1”

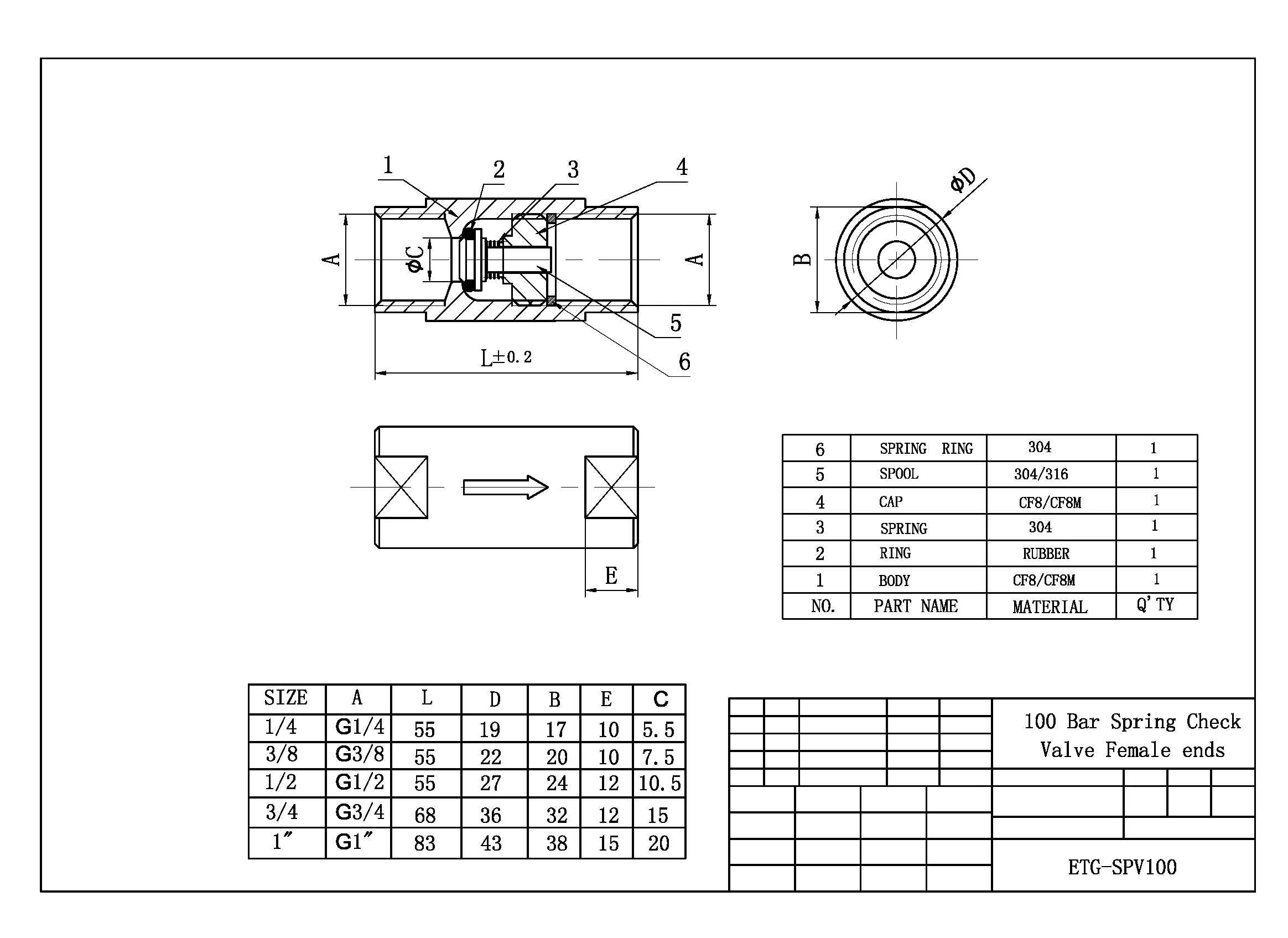

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

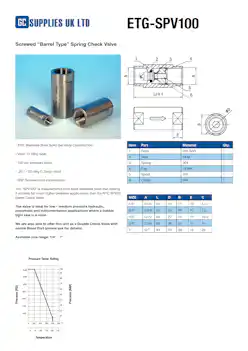

Screwed “Barrel Type” Spring Check Valve NTC-SPV100 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
