NTC 2006-M3

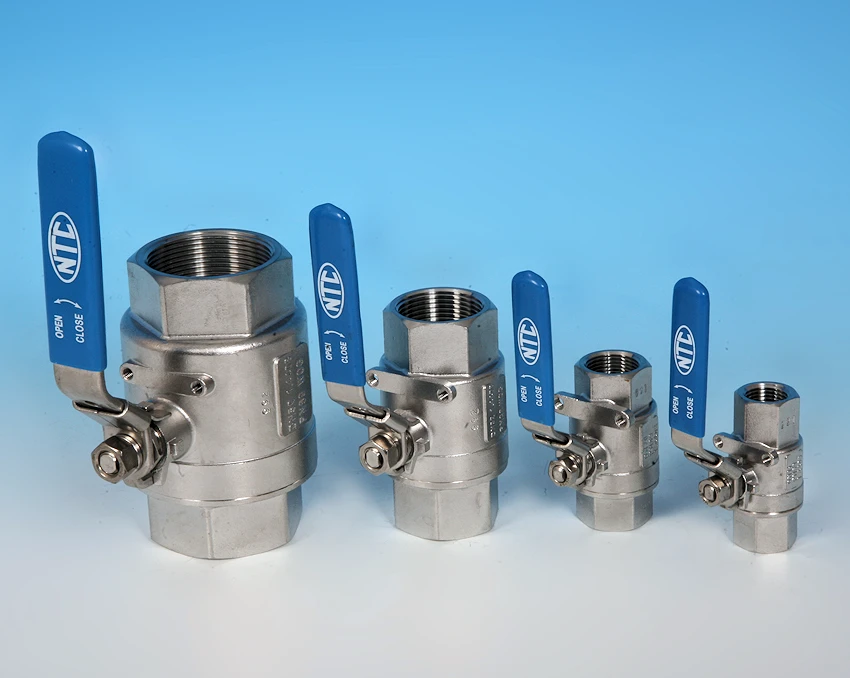

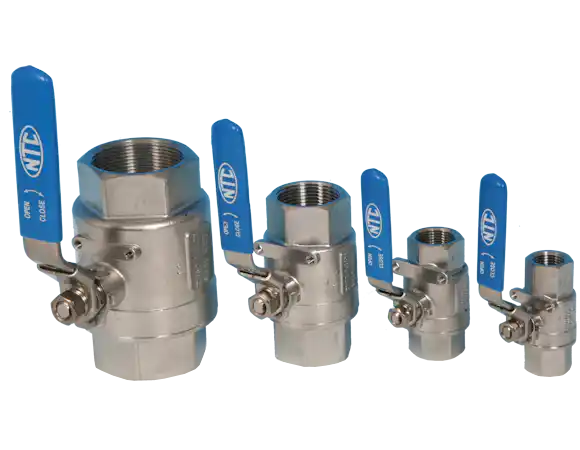

Heavy Duty 2-Pce Full Bore Ball Valve lever operated

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
WRAS Approved TFM 1600® Seats and PTFE Seals.
Body Length in accordance with DIN 3202-M3.
Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
1/4” up to 2” BSPT Screwed end connections.
Tapped Body Mounting Lugs. Electro-Polished Body.
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23.

Options available:

A high quality, general purpose ball valve suitable for most Liquid and Gaseous duties, especially Potable Water due to WRAS approved
Seat Materials being fitted as standard.
Full material Test Certificates available & WRAS certificate for TFM 1600® Seats.
Test standard – API 598

Available size range: 1/4” - 2”

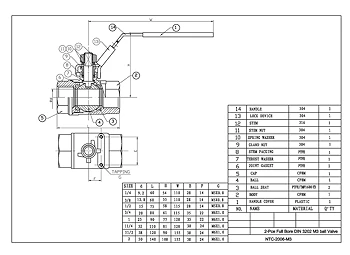

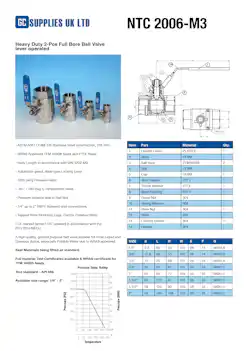

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

Heavy Duty 2-Pce Full Bore Ball Valve lever operated NTC 2006-M3 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
