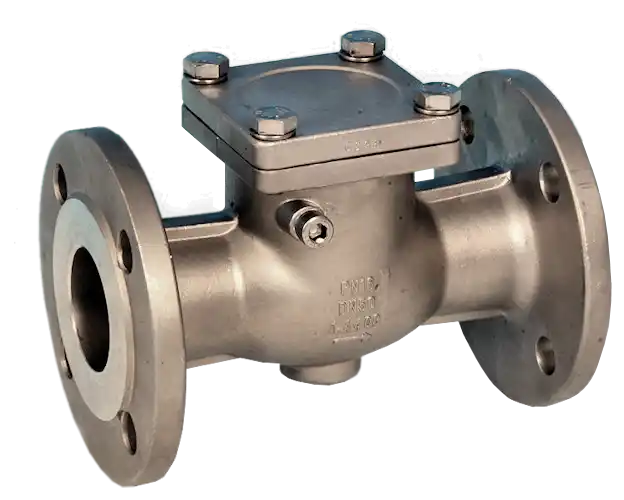

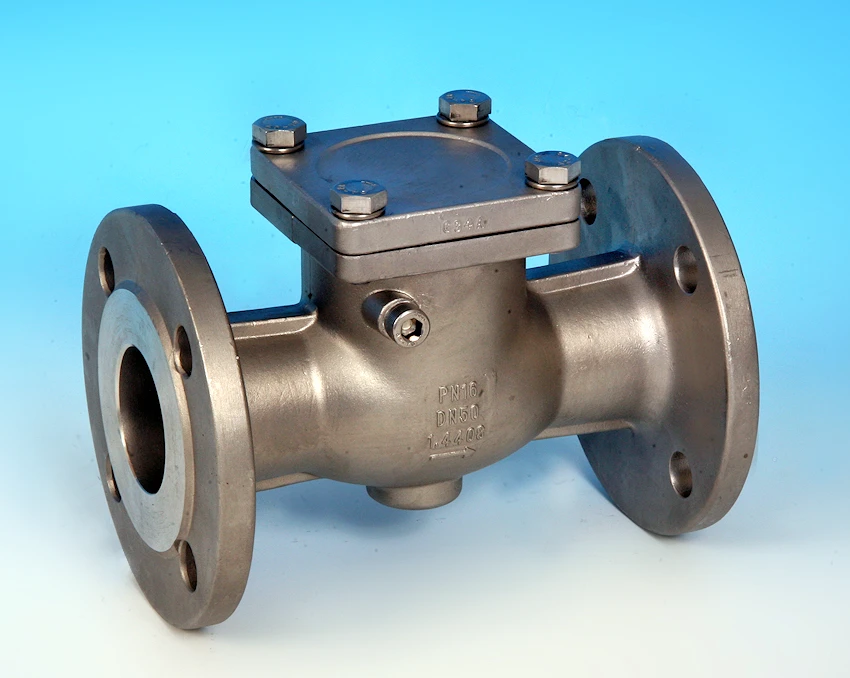

Swing Pattern Check Valve Flanged ANSI 150
ASTM A351 CF8M 316 Stainless Steel Body, Cover and Disc.
316 Stainless Steel Trim.
PTFE Cover Seal. Bolted Cover Design.
Face to Face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +200 deg C Temp rated.
Flanged ANSI 150 end connections.
CE marked in accordance with the PED 97/23/EC (from 1 1/2”).
This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 Face to Face dimensions.
Design standard – API 6D
Test Standard – API 598
Weight and Lever are available at extra cost.
Available size range: 1/2” - 6”

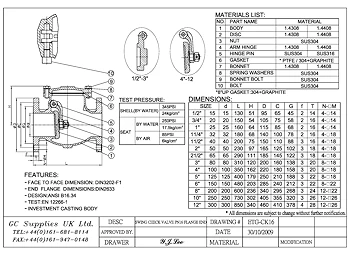

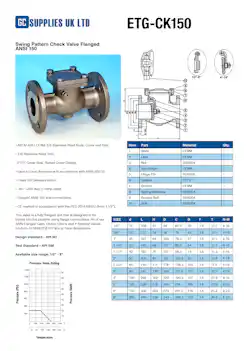

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
