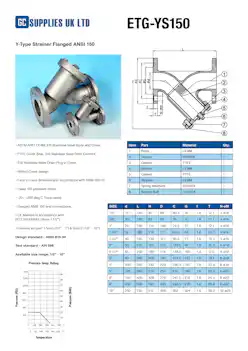

Y-Type Strainer Flanged ANSI 150
ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover.
Bolted Cover design.
Face to Face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +200 deg C Temp rated.
Flanged ANSI 150 end connections.
CE Marked in accordance with PED 97/23/EC (from 1 1/2”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/2” - 10”).
This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 face to face dimensions.
Design standard – ANSI B16.34
Test standard – API 598
Available size range: 1/2” - 10”

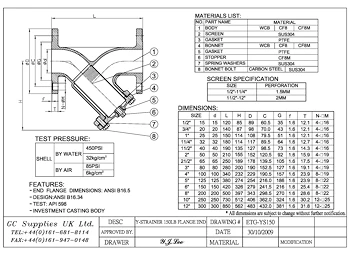

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
