manways

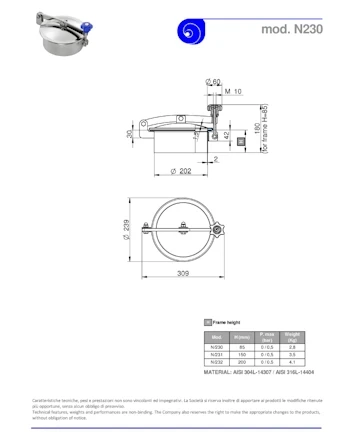

Model N/230/B 316L

200mm Diameter Low/Non-Pressure Round Manway



316L Stainless Steel construction. EPDM Seal. 85mm high neck.
Back-side opening.
Gasket on frame not glued.
Standard with EPDM gasket G/T200 and Nylon Handwheel MEC/60.
0.5 bar/g Max Pressure

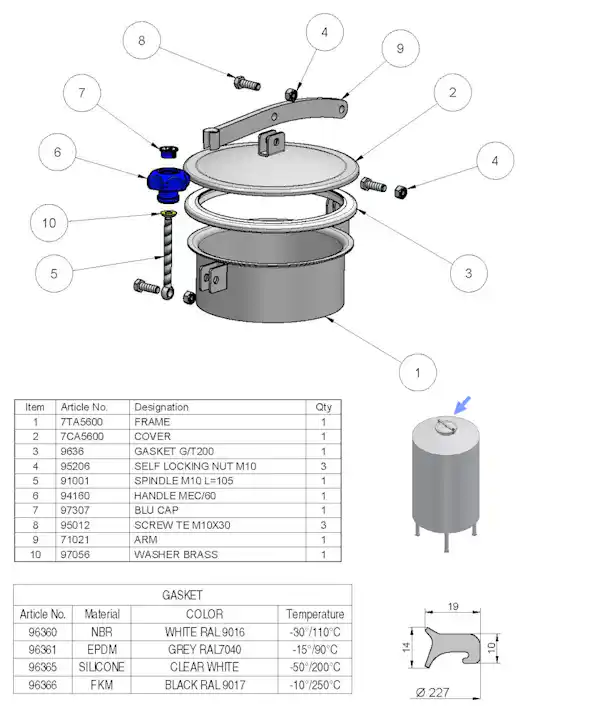

Exploded View

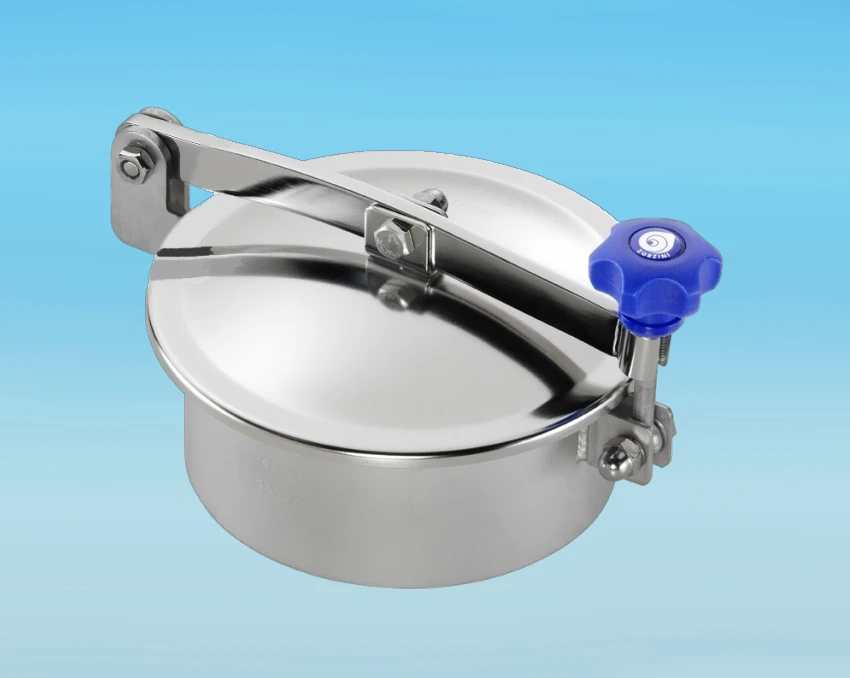

Stainless Steel 200mm Low/Non-Pressure Round Manway N/230/B 316L



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
