manways

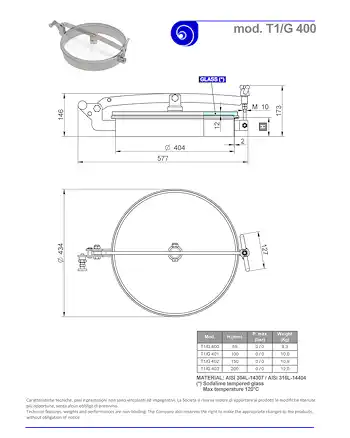

Model T1/G400 (404 mm) 304L/Glass

400mm Diameter Low/Non-Pressure Round Manway



304L Stainless Steel construction. EPDM Seal. 65mm high neck.
Back-side and side-swing opening.
Gasket on frame not glued.
Standard with EPDM Gasket G/T400, S.S. Handwheel VI/295 and rear safety pin.
Sodalime Tempered Glass. Max temperature 120°C
0.1 bar/g Max Pressure

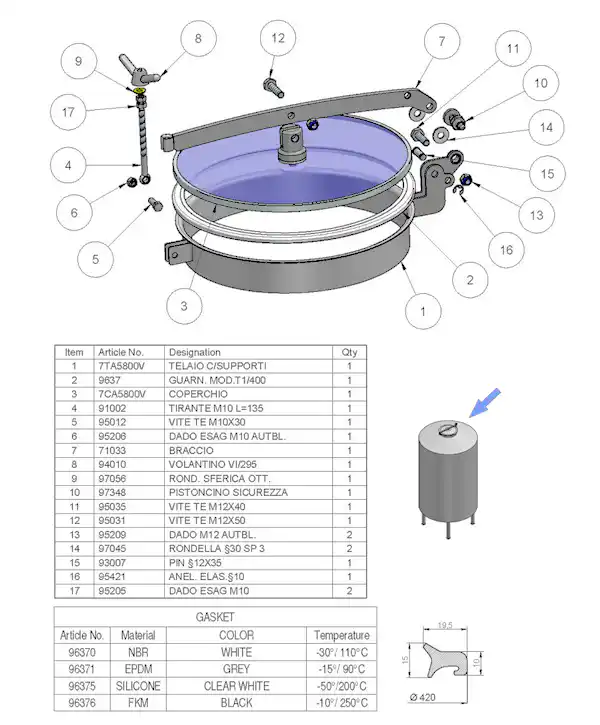

Exploded View

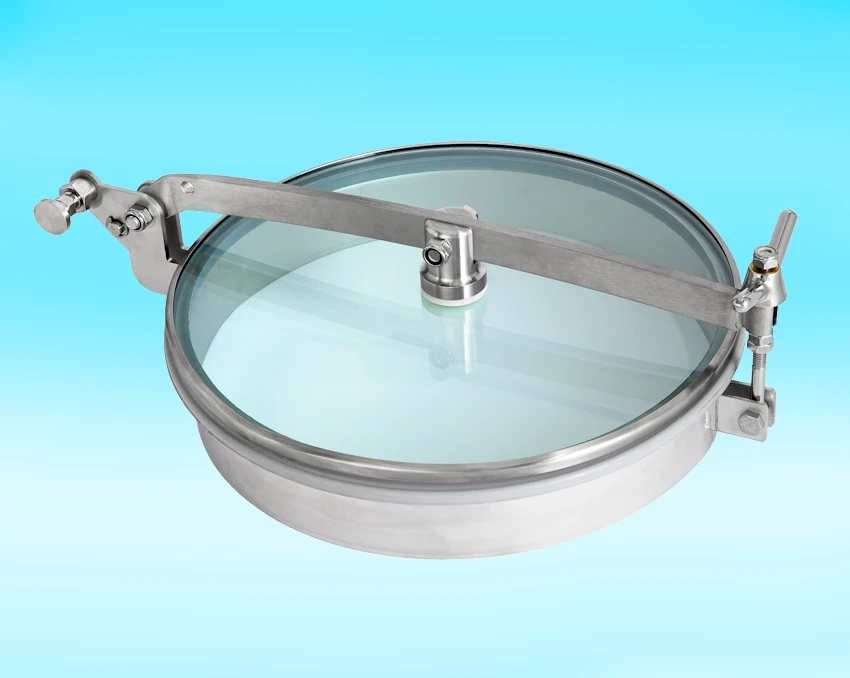

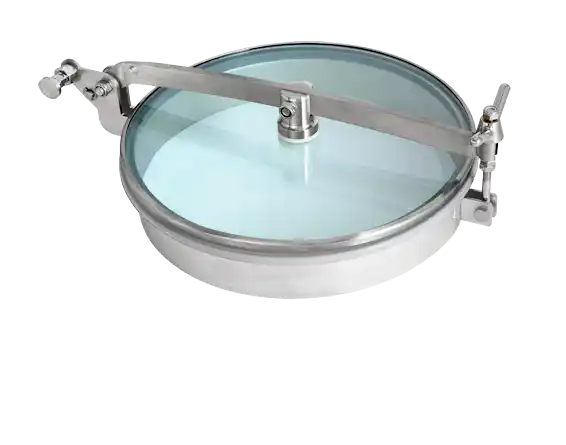

Stainless Steel 400mm Diameter Low/Non-Pressure Round Manway T1/G400 304L/Glass
