ETG-YS1/SW

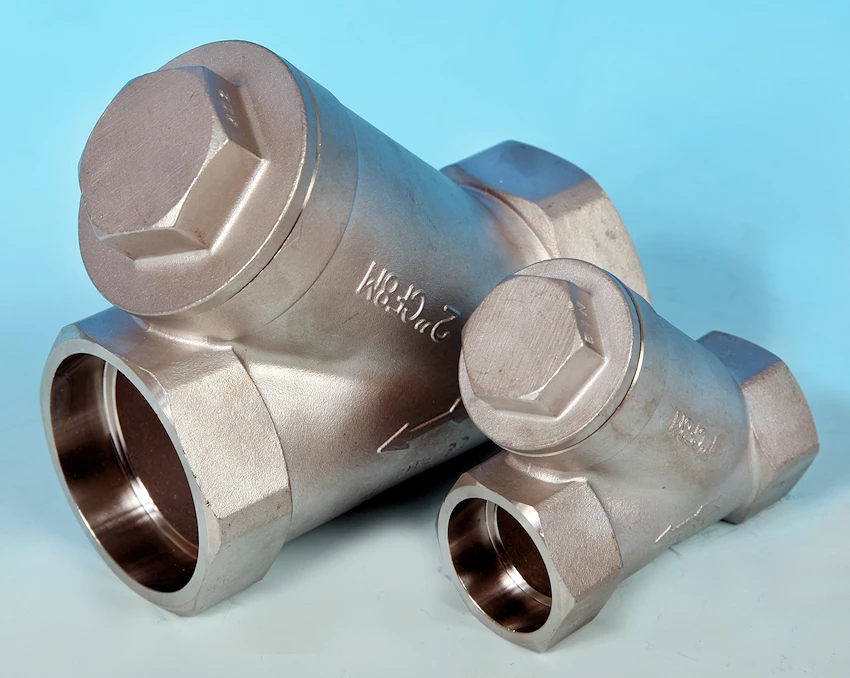

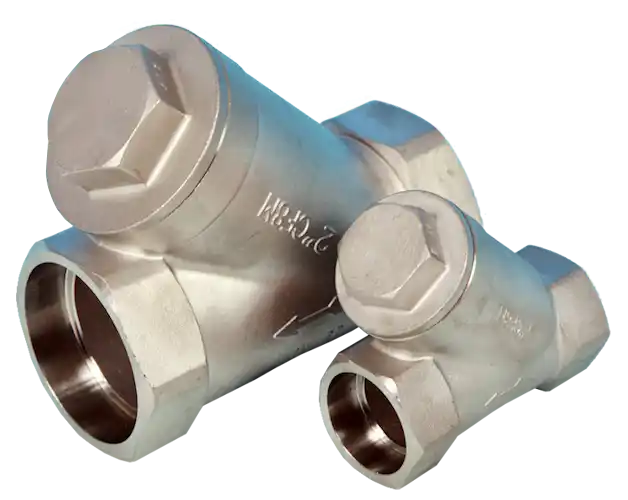

Socket Weld Y-Type Strainer

ASTM A351 CF8M 316 Stainless Steel Body and End Cap.
PTFE Cap Seal. 316 Stainless Steel Filter Element.
1mm Perforated Screen x 2mm pitch with 80 mesh inner lining.
800 psi pressure rated.
-25 / +200 deg C Temp rated.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).

A good all round general purpose Y-Type Strainer.
High quality, heavy duty cast Stainless Steel Body.
This valve is pressure rated to 800 psi rather than the usual 600 psi available elsewhere.

Available size range: 1/2” - 2”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

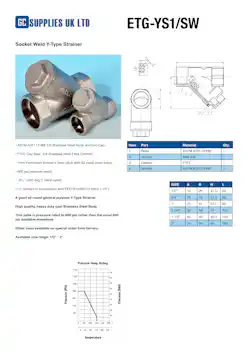

Socket Weld Y-Type Strainer ETG-YS1/SW Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
