ETG-YS16

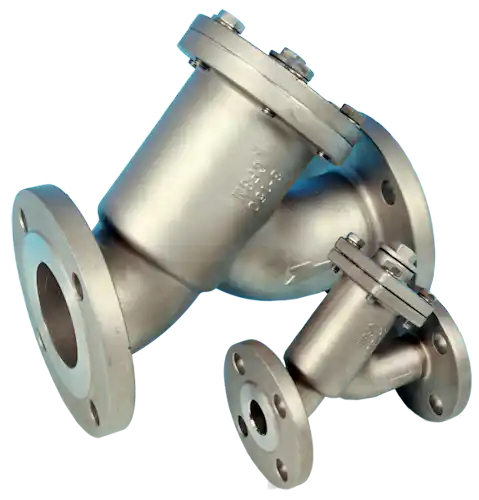

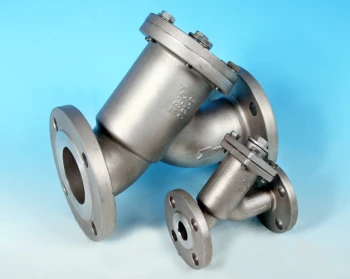

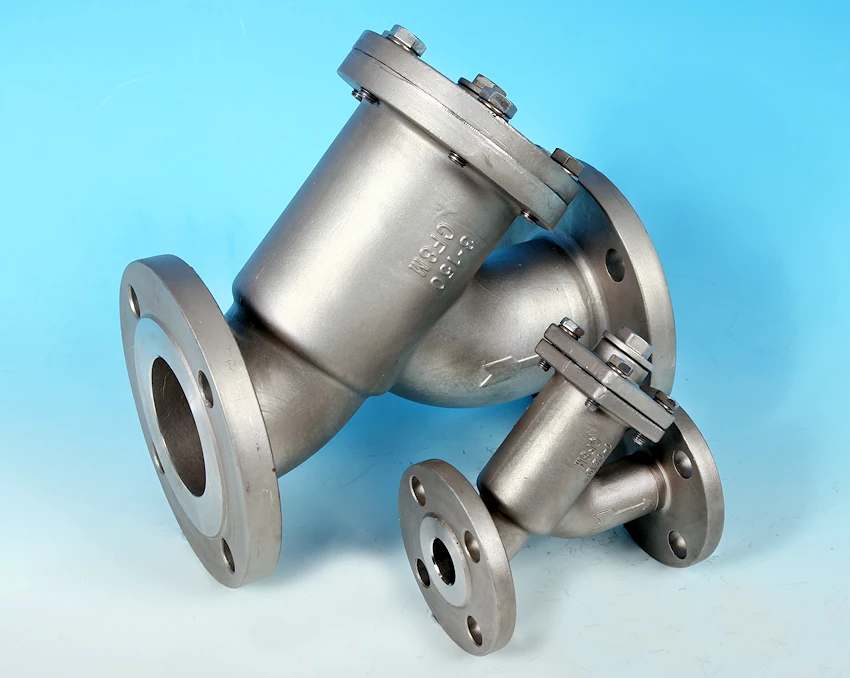

Y-Type Strainer Flanged BS4504 DIN PN16

ASTM A351 CF8M 316 Stainless Steel Body and Cover.
PTFE Cover Seal. 316 Stainless Steel Filter Element.
316 Stainless Steel Drain Plug in Cover. Bolted Cover design.
Face to Face dimension in accordance with DIN 3202/F1.
16 bar pressure rated. -20 / +200 deg C Temp rated.
Flanged PN16 end connections.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).
Element std perf 1.5mm (1/2” - 1”) & 2mm (1 1/4” - 10”).

This valve is a fully flanged unit that is designed to be bolted into the pipeline using flange connections.
All of our DIN Flanged PN16 Gate, Globe, Check and Y-Strainer Valves conform to DIN 3202/F1 Face to Face dimensions which mean they are “long pattern” valves and are not to be confused with shorter “ANSI” pattern valves that are available elsewhere.
Test Standard API 598.

Available size range: 1/2” - 10”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

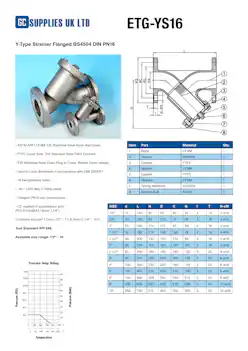

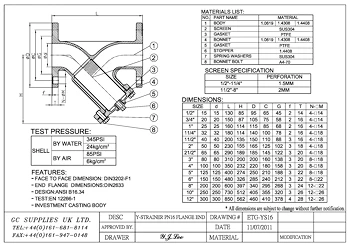

Y-Type Strainer Flanged BS4504 DIN PN16 ETG-YS16 Enlarge
