ETG M-3BW

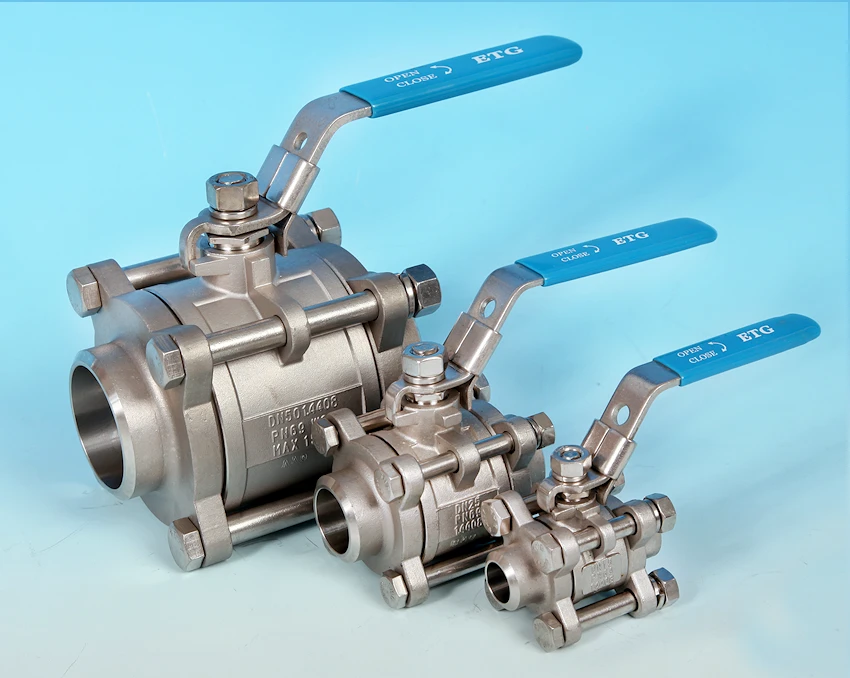

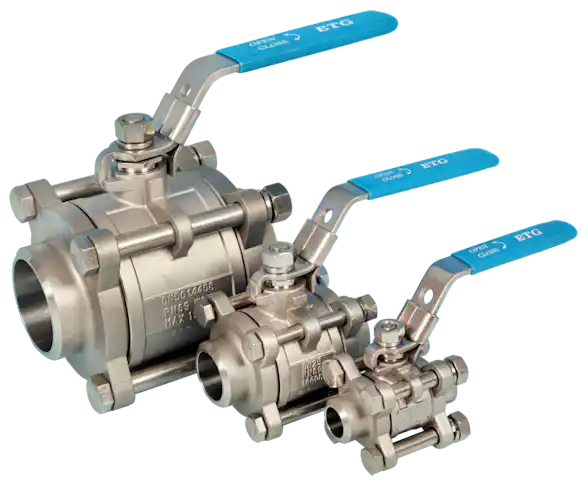

3-Pce Butt Weld Full Bore Ball Valve lever operated

3-Pce Butt Weld Full Bore Ball Valve lever operated
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23/EC

A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties. Ball can be drilled for upstream vent applications such as bleach and peroxide duties.

15% Glass R-PTFE Seal Kits available for elevated temperature duties.

Valves can be adapted to Socket Weld End for Metric Piping Systems

Full material Test Certificates available

Test standard – API 598

Butt Weld Ends - ASME B16.25 (Sch 40). Can be machined to Sch 10.

Available size range: 1/4” - 4”

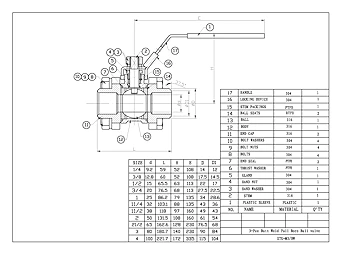

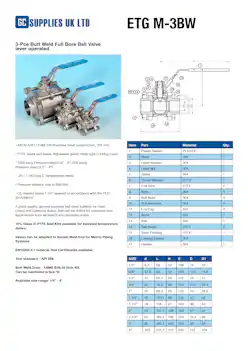

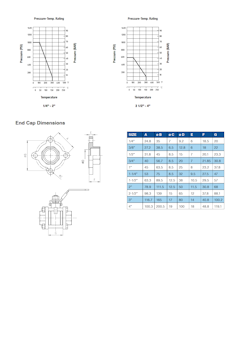

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

3-Pce Butt Weld Full Bore Ball Valve lever operated ETG M-3BW Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
