3-way ball valves

ETG3WCF/B-L (L-Port)
ETG3WCF/B-T (T-Port)

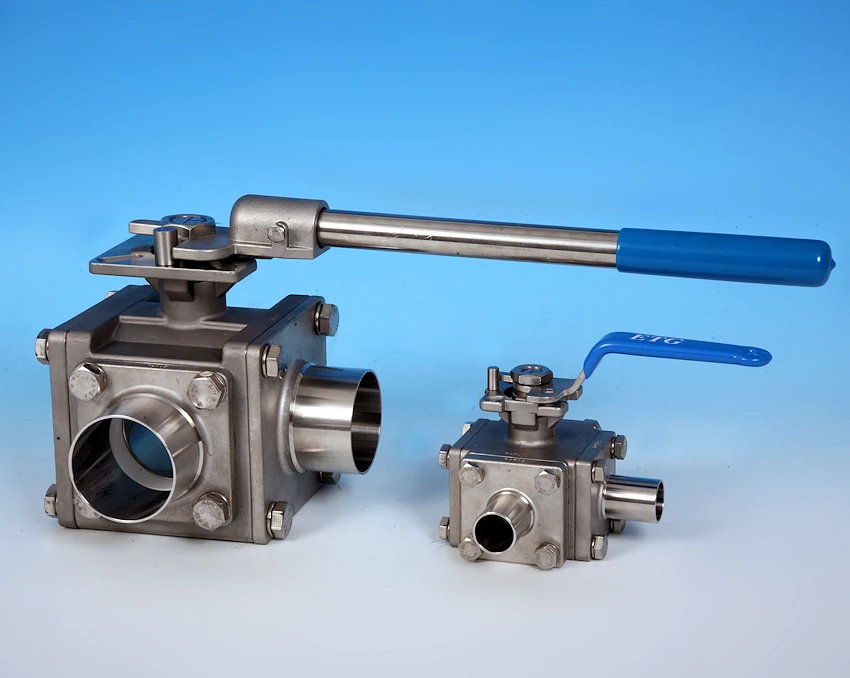

3-Way Sanitary Weld End Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
Virgin PTFE Seals and Cavity Filled Ball Seats.
ISO 5211 Direct Mounting Pad and Square Stem for easy automation.
Lockable Lever. Mirror Polished Bore. Ends to suit Imperial O/D Tube
Valves are Full Bore and are therefore suitable for use on Pigged pipework.

Options available:

100mm high Spindle Extension for Insulation & Actuation
RJT, DIN, 3A, SMS and IDF end connections can be supplied on short lead times.

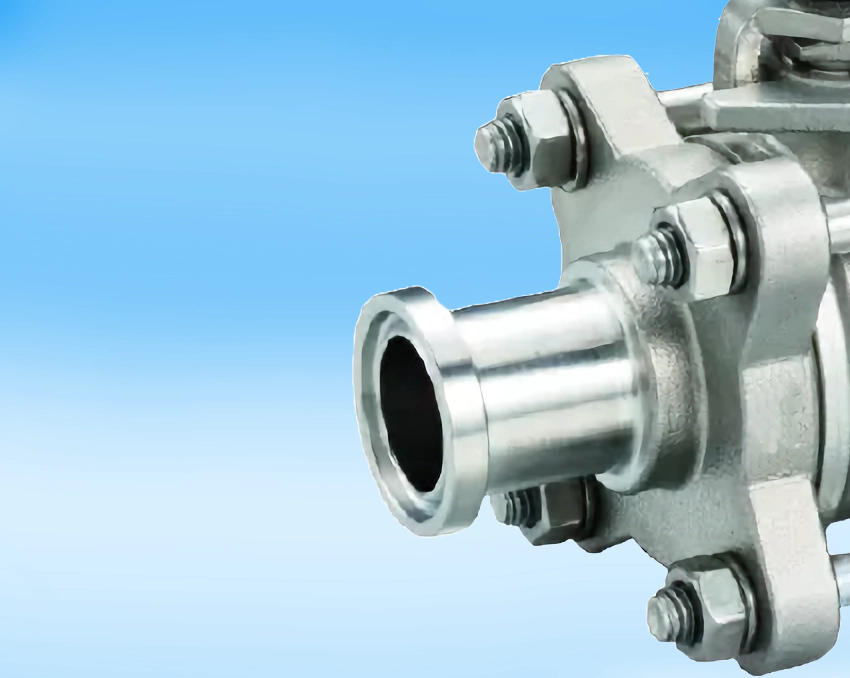

T-Clamp ends available as standard (sizes 1” -2”), see ETG 3WCF/C-T (T-Port).
Heating Jacket can be fitted to base of valve only.

Available size range: 1/2” - 4”

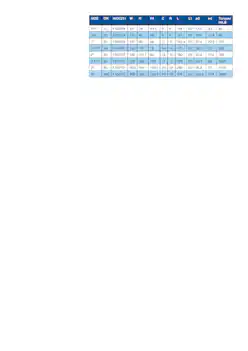

Drawings:

Download file Print ViewView Full Screen Get 7z Get Acrobat Reader

2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve NTC KV-L61/E 2 inch 1" - 2" Size Range

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve NTC KV-L61/E 3 inch 2.1/2" - 4" Size Range

Download filePrint ViewView Full Screen







Problems opening the Print Version? Click HERE
