ETG M-2SL

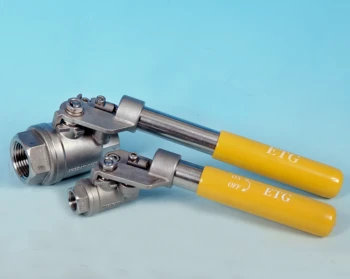

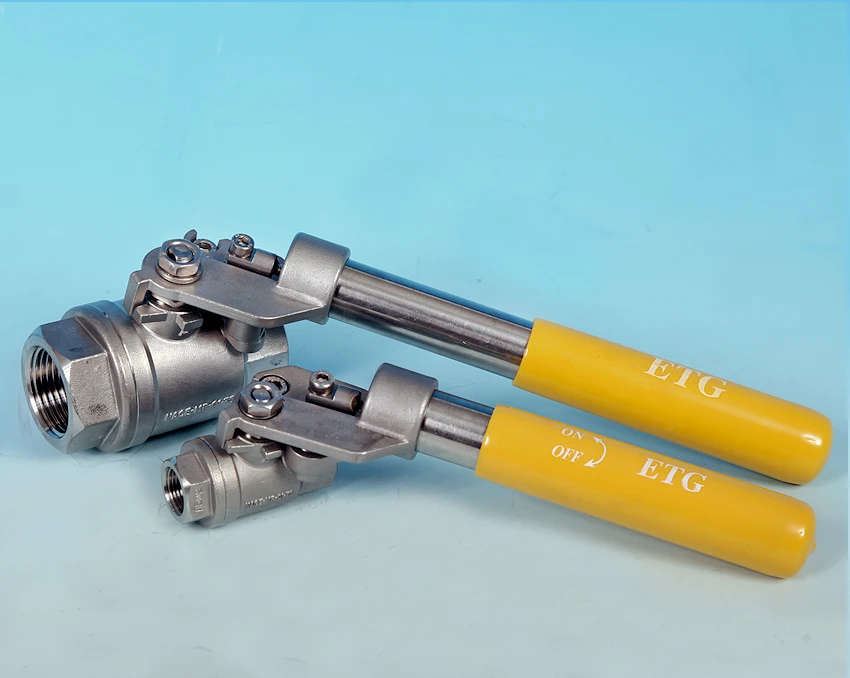

2-Pce Full Bore Spring Handle Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. 2000 psi/g Pressure rated.
-20 / + 180 Deg C Temperature rated.
Fully Adjustable Spring Tension. Nace compliant.
BSP End Connections.

Fail Close Spring Lever or “Dead Man's” Lever Ball Valves are used on applications where there can be no chance of the valve being left in an open position on hazardous and expensive product applications such as fuelling stations etc.

The Spring is enclosed within the tubular handle of the valve thus preventing possible finger trap hazards.

Full material Test Certificates available.

Test standard – API 598

BSP Ends - BSPP ISO 228/1

Available size range: 1/4” - 2”

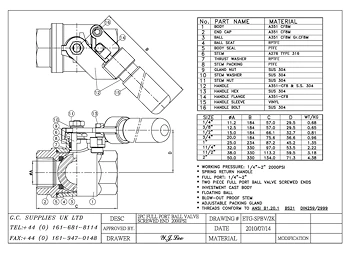

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

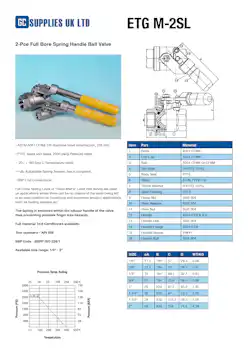

2-Pce Full Bore Spring Return Lever Ball Valve ETG M-2SL Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
