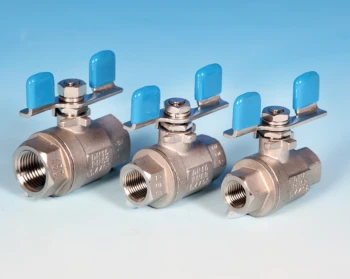

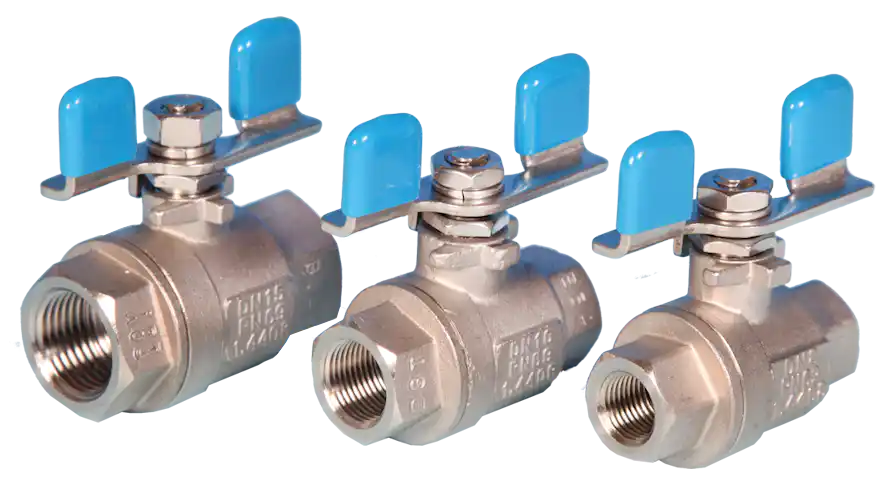

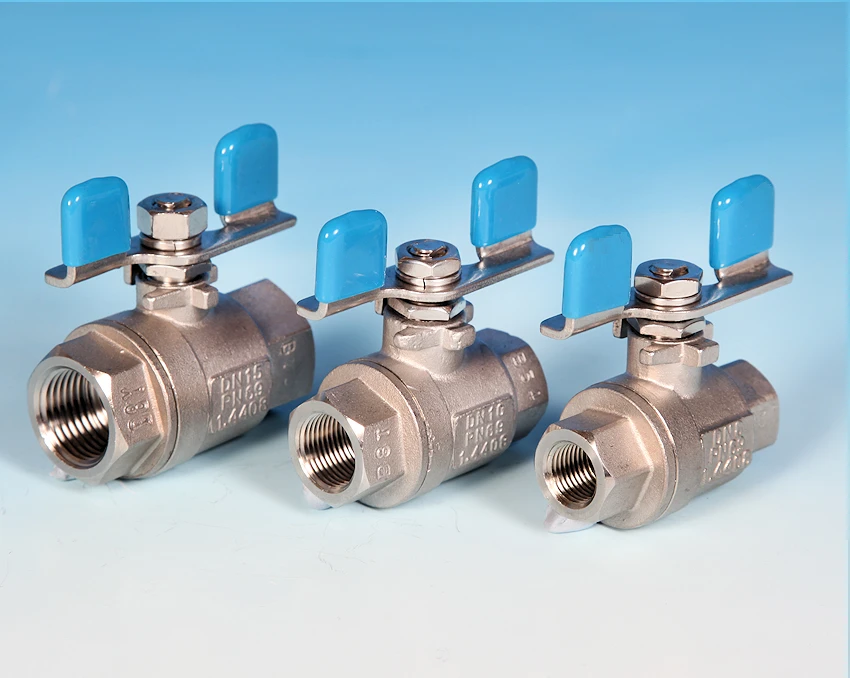

2-Pce Full Bore Ball Valve T-Handle
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. T-Handle operator.
1000 psi/g Pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
BSP Screwed end connections only.
A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties
Full material Test Certificates available
Test standard – API 598
BSP Ends - ISO 7-1
Available size range: 1/4” - 1/2”

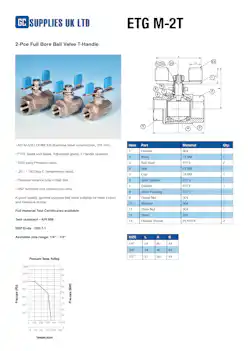

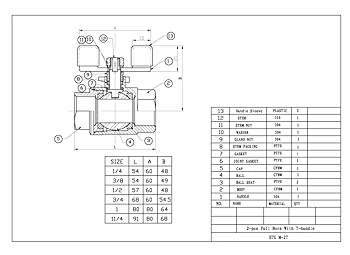

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
