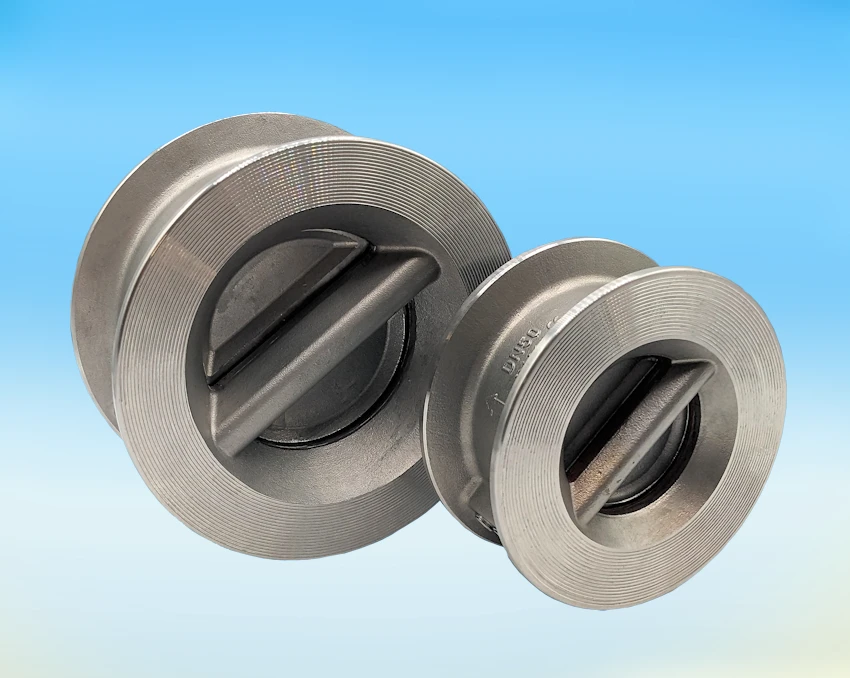

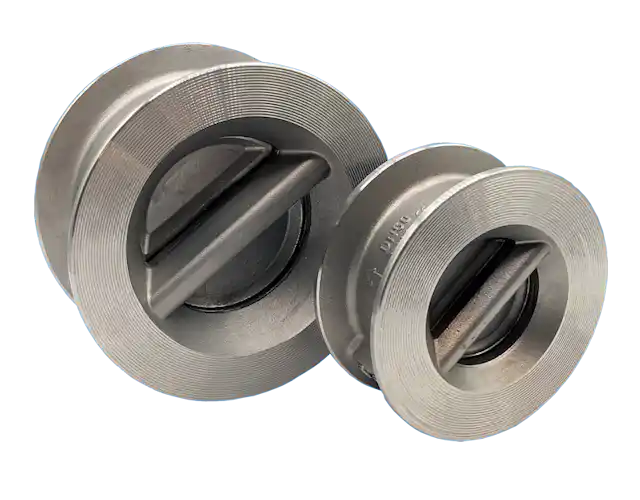

Dual Plate Wafer Pattern Spring Check Valve

ASTM A351 CF8M 316 Stainless Steel Body & Plates, F316 Stop & Hinge Pin, 316 Spring, Retainer & Bearings.
Viton Seat vulcanised into a body slot.
16 bar pressure rated. -20 / +150 deg C Temp rated.
To fit between BS4504 DIN PN10/16 Flanges (may fit some ANSI sizes, please check with our sales office).
CE marked in accordance with the PED 97/23/EC

The valves are designed to fit between flanges within the PCD of the flange bolts.

The valve requires flange gaskets to be used.
Because both sealing plates fold back, the valve has excellent flow characteristics, especially on water duties.
Face to Face dimensions in accordance with API 594.

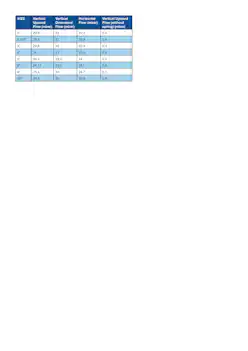

Available size range: 2” - 8”

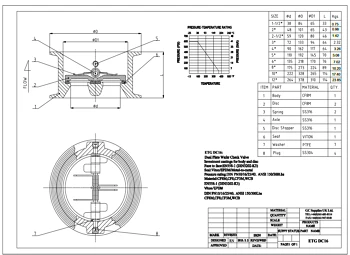

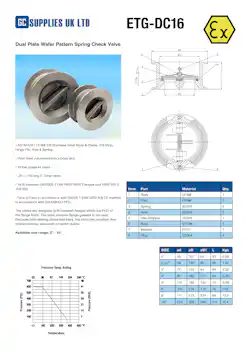

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

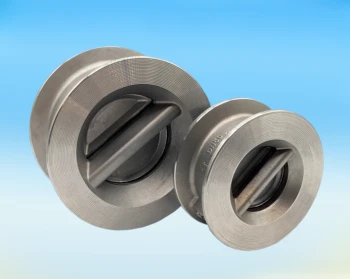

Dual Plate Wafer Pattern Spring Check Valve ETG-DC16 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
