actuated valves

KV-L82FS-PNU/DA
KV-L82FS-PNU/SA
KV-L82FS-ELE/DA

KV-L82FS-PNU/DA Double Acting Pneumatic Actuated (Air/Air)
KV-L82FS-PNU/SA Single Acting Pneumatic Actuated (Air/Spring)
KV-L82FS-ELE/DA Double Acting Electric Actuated

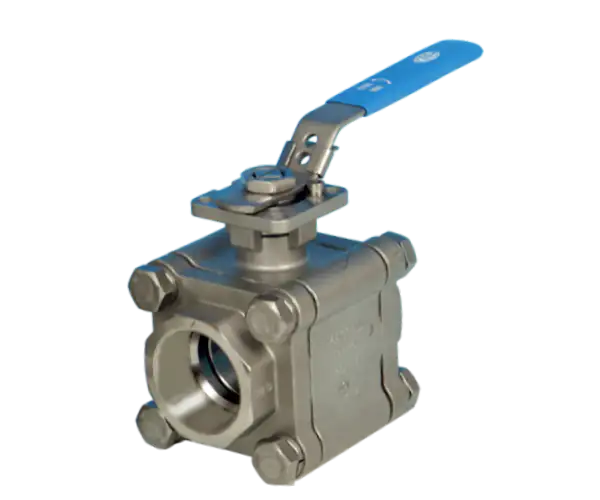

3-Pce Full Bore Firesafe Actuated Ball Valves

Socket Weld end connections. ASTM A351 CF8M Stainless Steel construction, ASTM A351 CF3M 316L Weld Ends, 316 Trim. TFM 4215 (25% Carbon Filled TFM) Ball Seats and Grafoil Body and Stem Seals. Ta-Luft self adjusting stem sealing. ISO 5211 Direct Mount. Fire Safe Certified API 607 5th Ed (ISO 10497). Anti-Static devices for Ball-Stem-Body. AtEx Certified.
1/2” - 1” 2000 psi/g pressure rated (Class 800), 1 1/4” - 2” 1500 psi/g pressure rated (Class 600). Nace MR-01-75 compliant.
Pressure balance hole in Ball Slot. Blow-out Proof Stem.

Pneumatic Actuators

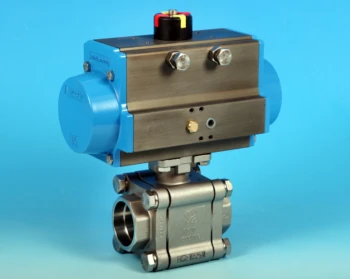

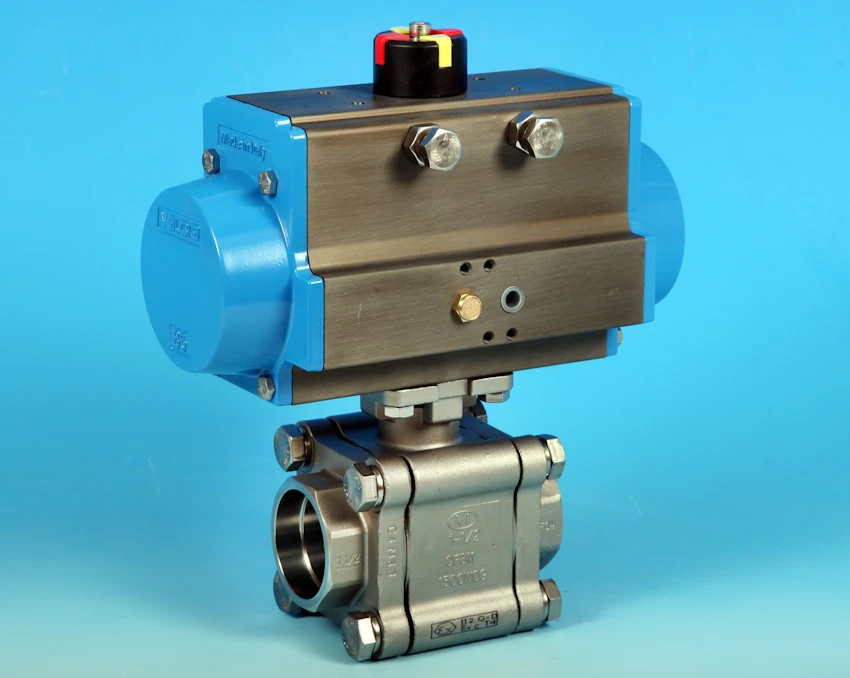

Valve shown top left is fitted with quarter turn Pneumatic Aluminium Rack and Pinion Single (Air Spring) or Double (Air/Air) Acting Actuator. Actuator is Atex compliant and SIL 3 rated. Actuator Packages are fully assembled and functionally tested (dry bench test on 5.5 bar/g air supply) in house prior to dispatch.

Options include Namur Mount Pilot Solenoids, Switch Boxes, Positioners, De-Clutchable Gearboxes and alternative materials of construction, such as Stainless Steel, or special coatings, such as PTFE.

Electric Actuators

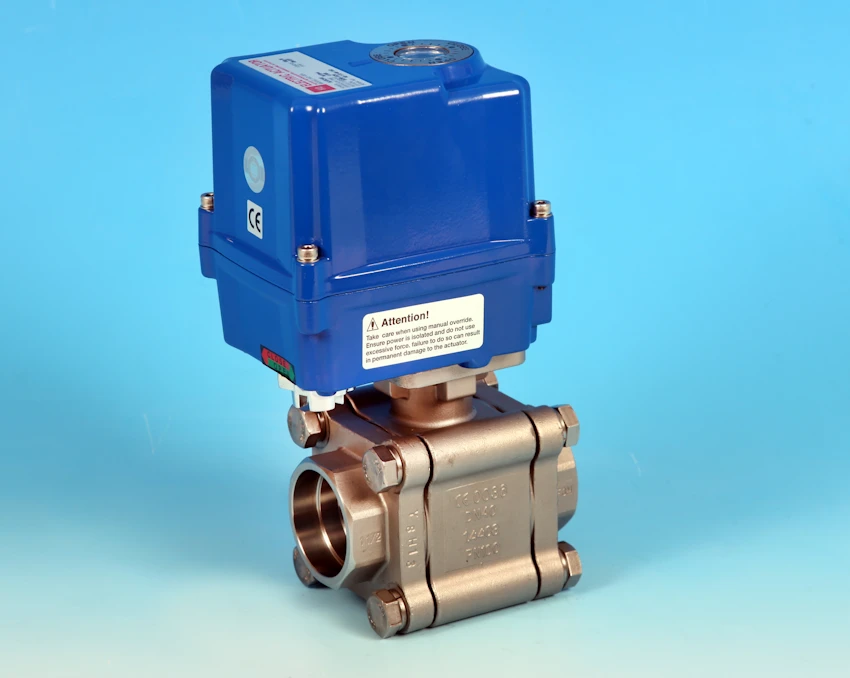

Valve shown bottom left is fitted with quarter turn Electric Double Acting (Power Open/Power Close) Actuator. Model shown is HQ4/6. All electric actuators have manual override facility, open/close visual indication, IP67 rating, anti-condensation heater, four limit switches, push button terminal strip, wiring diagram and reversible motor with low power consumption. Output torques of 40 to 3,000 Nm.

Options include IP68 double sealed housing, local controls, 4-20 mA and 0-10v modulation control, Atex Eexd enclosure, High Temperature fire protection, speed control and battery back-up.

Actuator Sizing Chart

  1/4" 3/8" 1/2" 3/4" 1" 1.1/4" 1.1/2" 2"
PNU DA 52 52 52 52 63 63 75 75
PNU SR 52 52 52 63 75 75 85 100
ELE DA HQ4 HQ4 HQ4 HQ4 HQ4 HQ4 HQ4 HQ6



Drawings & Spec Sheets:

    Model 52-100       Model 52-230        HQ004-HQ006        HQ008-HQ120

Actuator Model 52-100 Actuator Model HQ004-HQ006 Actuator Model HQ008-HQ120

Download file Get 7z Get Acrobat Reader

Download the PDF, unzip the file, we recommend 7z which is free and use a PDF reader such as Adobe Reader, also free. See links left.
