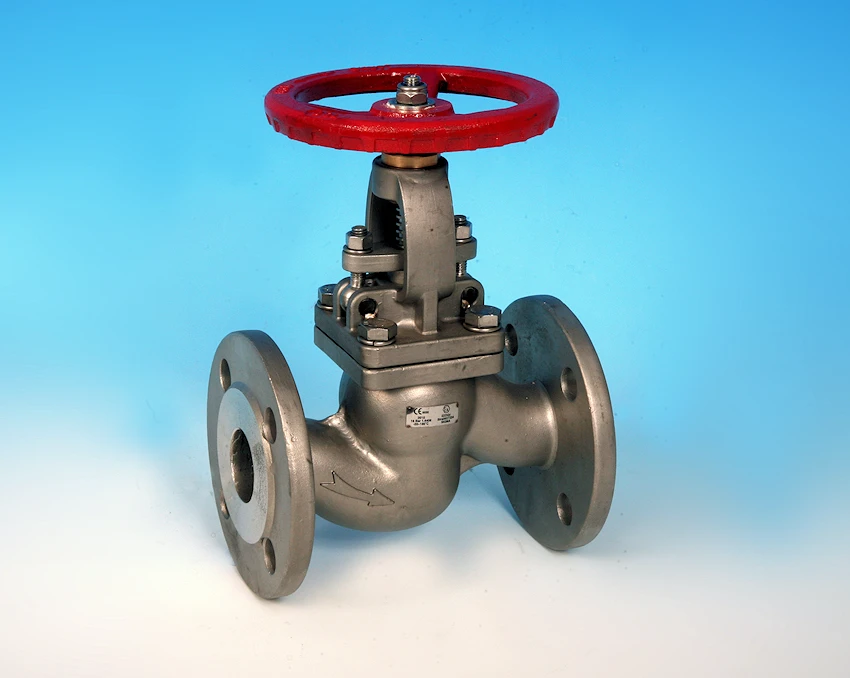

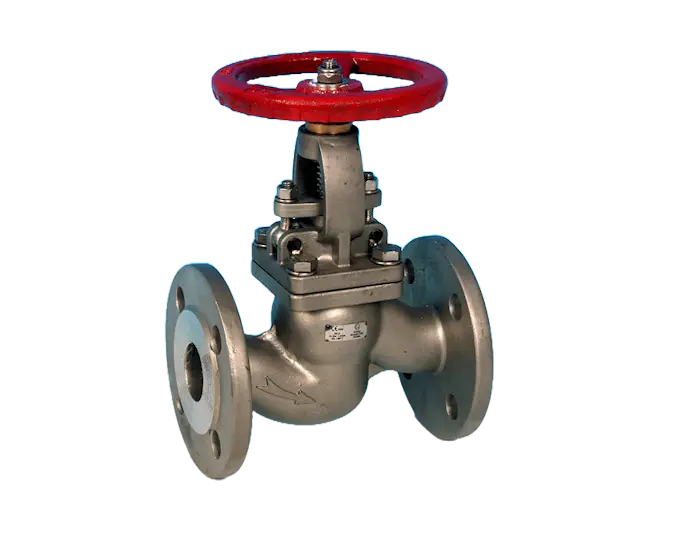

Flanged Pattern Globe Valve ANSI 150

ASTM A351 CF8M 316 Stainless Steel Body, Bonnet and Disc.
316 Stainless Steel Stem and Trim. Ductile Iron painted Handwheel.
PTFE Gland Packing and Bonnet Seal. Bronze Bush.
Bolted Bonnet. Outside Screw and Yoke. Rising Stem.
Metal to Metal Taper Disc.
Face to face dimensions in accordance with ANSI B16.10
Class 150 pressure rated. -20 / +180 deg C Temp rated.
CE marked in accordance with the PED 97/23/EC (from 1 1/2”).

This valve is a fully flanged unit that is meant to be bolted into the pipeline using flange connections.
All of our ANSI Flanged Gate, Globe, Check and Y-Strainer Valves conform to ANSI B16.10 face to face dimensions.
Design standard – ANSI B16.34
Test standard – API 598
Design standard – ANSI B16.34
Test standard – API 598

Available size range: 1/2” - 6”


Download file Print View View Full Screen Get 7z Get Acrobat Reader

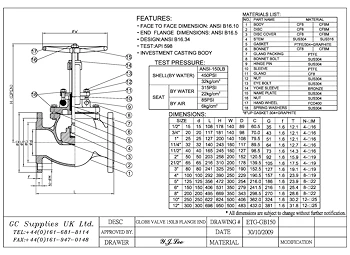

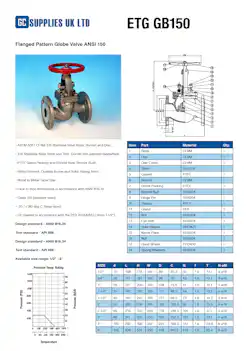

Flanged Pattern Globe Valve ANSI 150 ETG-GB150 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
