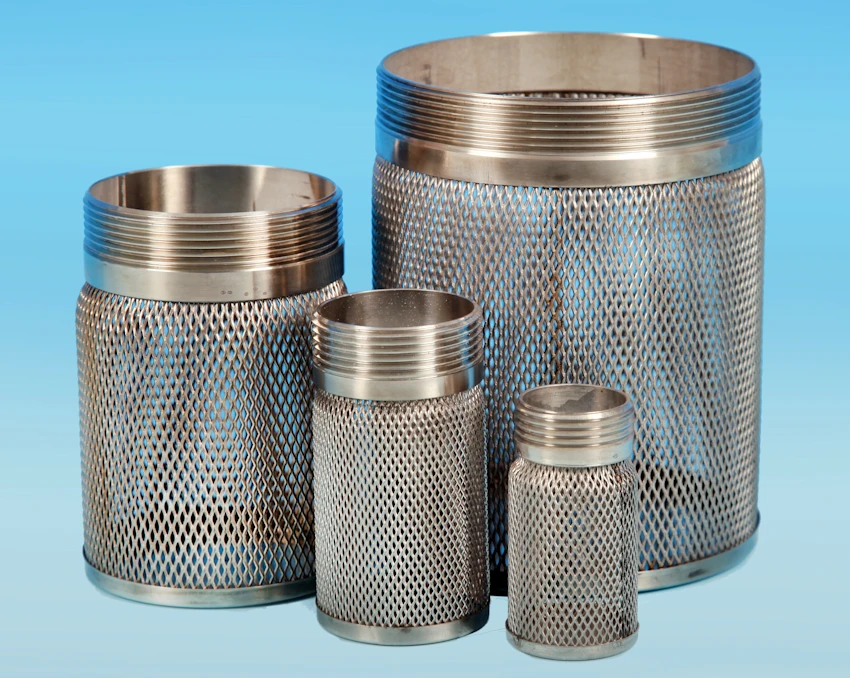

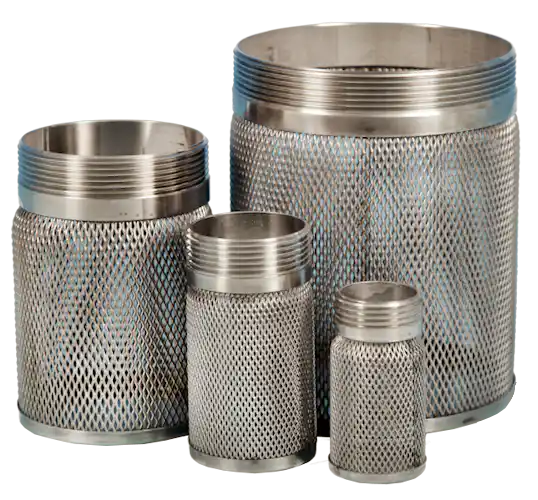

BSP Screwed Suction Basket Filter
All Stainless Steel construction
Male Threaded in accordance with UNI ISO 228 BSP
1 mm aperture (13 mesh) on sizes 1/2” - 2”
1.8 mm aperture (8 mesh) on sizes 2 1/2” - 4”
This product is designed to be used at the end of suction pipework, either on it's own or in conjunction with a Check Valve as a Footvalve Strainer, to protect the pump (or similar) from any large pieces of foreign matter or debris from entering the pipework system.
If the Suction Basket Filter is to be used in conjunction with a check valve, we recommend the use of a Barrel Type spring check valve (NTC SPV-20, ETG SPV-69S or ETG SPV-100) details of which can be found in this section.
Available size range: 1/2” - 4”

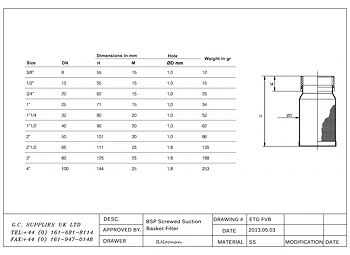

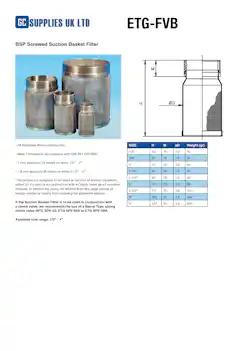

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
