NTC KV-L30 (BSP & NPT Screwed Ends)
NTC KV-L31 (Butt Weld Ends)
NTC KV-L32 (Socket Weld Ends)

3-Pce Full Bore Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel Body and Trim.
TFM 1600® Ball Seats and PTFE Seals. Ta-Luft self adjusting stem.

TFM 1600® is an FDA & WRAS certified material.

ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
1000 psi/g pressure rated. Nace MR-0175 compliant.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

50% S/S Filled PTFE & UHMWPE Ball Seats
60 Deg V-Ball for modulation duties
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever

Upstream Ball and Cavity Relief hole drilled into Ball

Butt-Weld Valve can be modified to make Socket Weld Ends for Metric Pipe Systems

Design Standard: MSS SP-110
Wall Thickness: EN 12516-3
Inspection & Testing: MSS SP-110

BSP Ends - BSPP IS0 228/1

Socket-Weld Ends - ASME B16.11

Butt-Weld Ends - ASME B16.25 (Sch 40)

Available size range: 1/4” - 4”

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

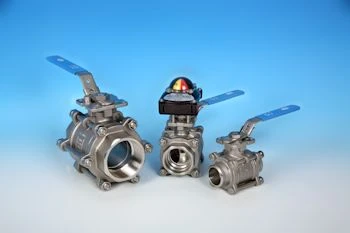

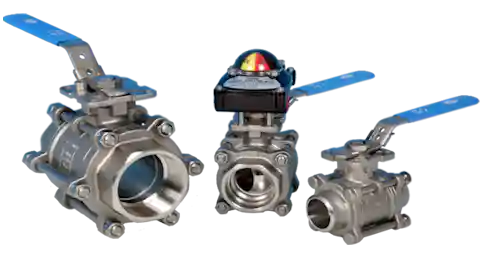

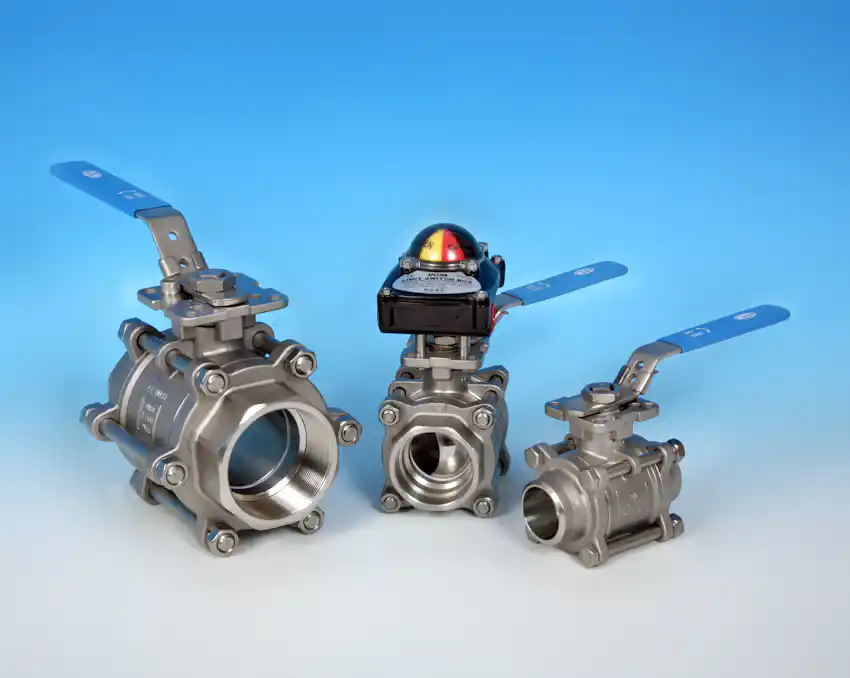

3-Pce Full Bore Direct Mount Ball Valve NTC KV-L30 NTC KV-L31 NTC KV-L32 Enlarge picture

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE



For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
