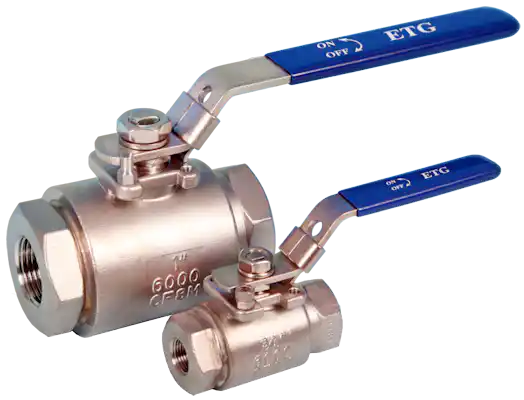

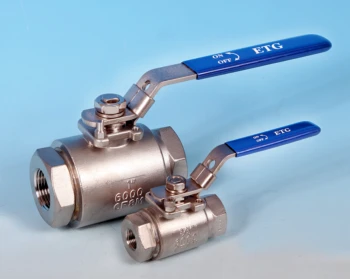

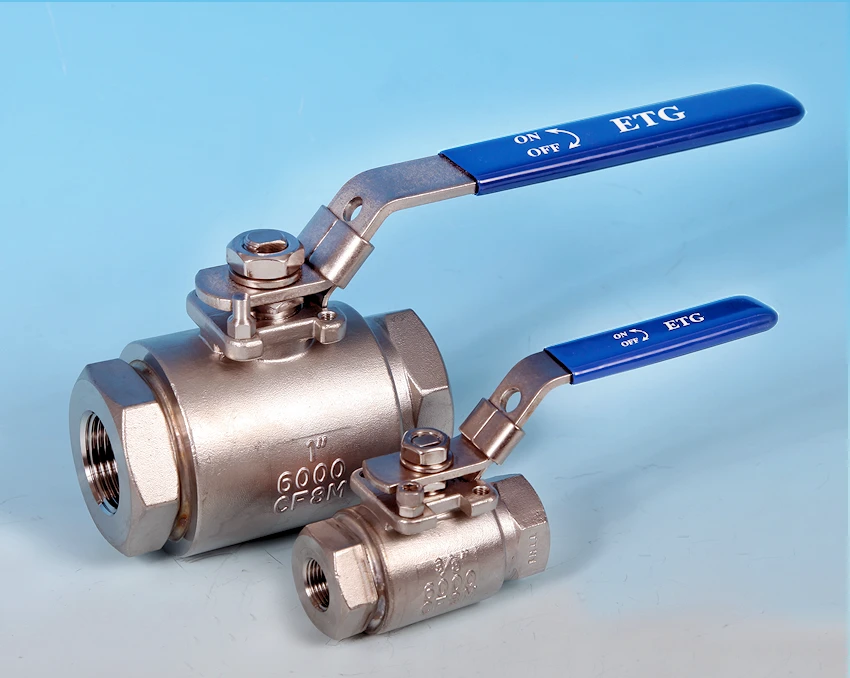

2-Pce Full Bore High Pressure Ball Valve
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
Delrin (POM) Seats and Seals. 6000 psi/g Pressure rated.
-20 / + 80 Deg C Temperature rated.
Unsuitable for Oxygen duty and elevated temperatures.
ISO 5211 Mounting Pad (non-direct mount). Nace compliant.
Fully Seal Welded Body construction. Slide Type Lockable Lever.
BSPT and NPT End Connections. Silicon and Grease cleaned.
NACE MR-0175 compliant.
A good quality, high cycle life ball valve suitable for most High Pressure Liquid and Gaseous duties.
Full material Test Certificates available
Test standard – API 598
BSP Ends - BSPT BS21
NPT Ends - ASME B1.20.1
Available size range: 1/4” - 1”

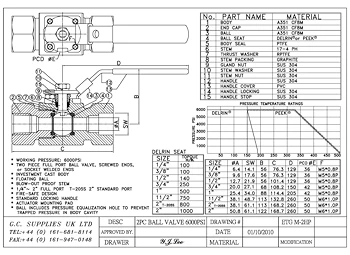

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
