3-way ball valves

NTC KV-L50 (L-Port)
NTC KV-L51 (T-Port)

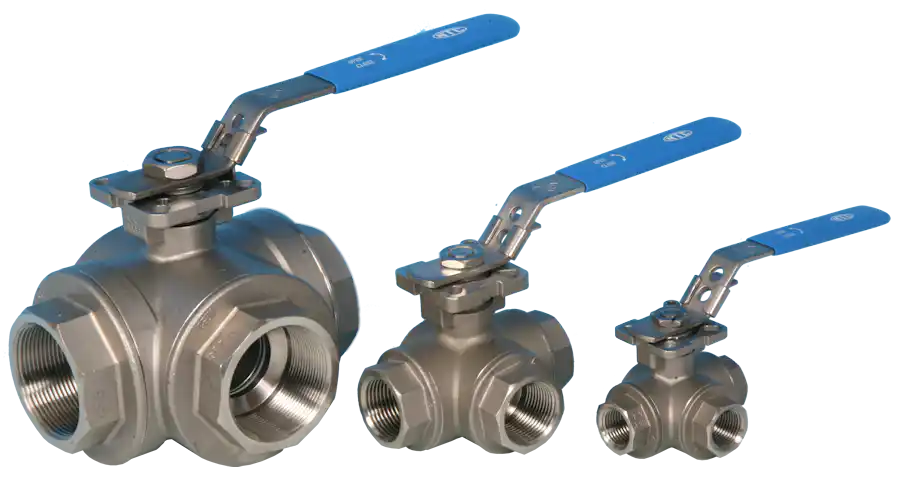

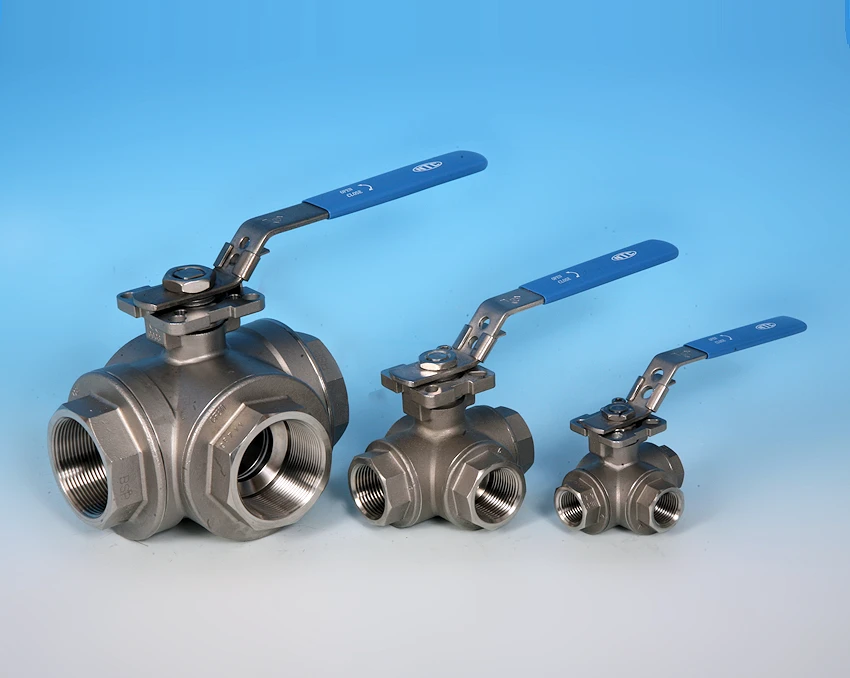

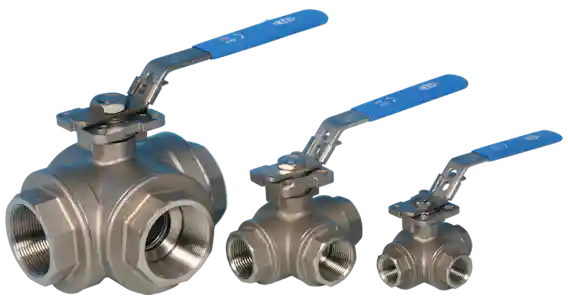

3-Way BSP Screwed Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Seats and Seals. Ta-Luft self adjusting stem sealing.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body.
ATEX approved (1/4" - 2" only)
Locking Lever at 90 degree increments.
1000 psi/g pressure rated. Nace MR-0175 compliant.

1/4" & 3/8" are Full Bore. 1/2" - 4" are Reduced Bore.

TFM 1600® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever

Design Standard: MSS SP-110
Wall Thickness: ASME B16.34 Class 400
Inspection & Testing: MSS SP-110

BSP Ends - BSPP IS0 228/1

Available size range: 1/4” - 2”

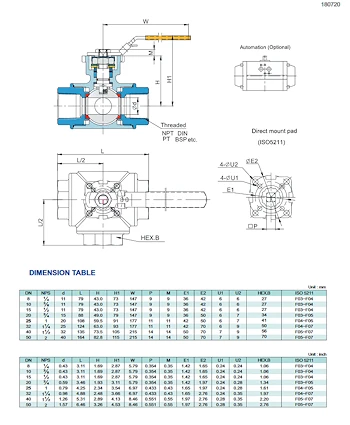

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

3-Way BSP Screwed Reduced Port Direct Mount Ball Valve NTC KV-L50 NTC KV-L51 Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
