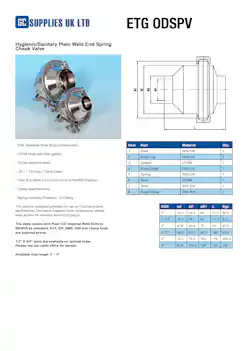

ETG ODSPV

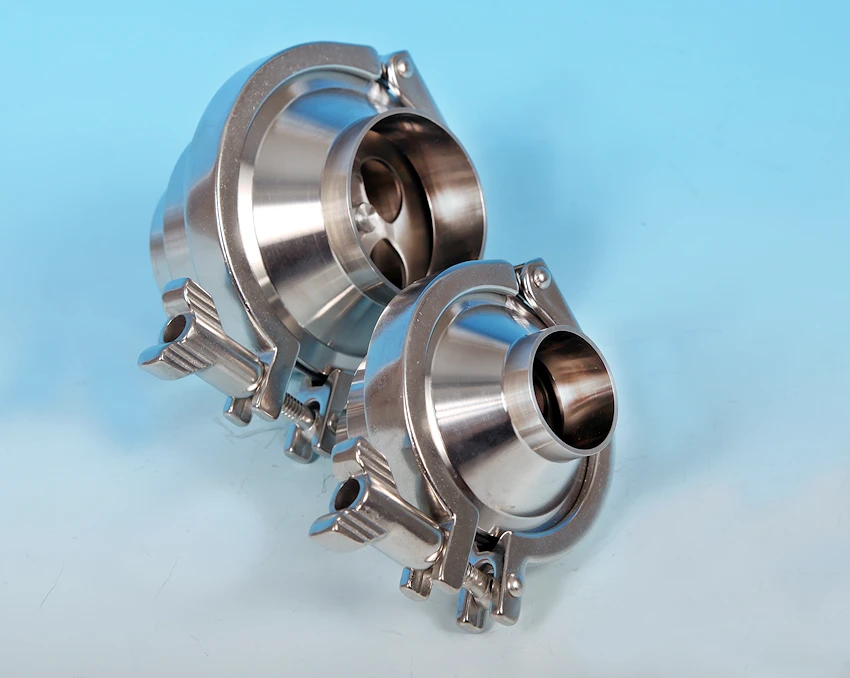

Hygienic/Sanitary Plain Weld End Spring Check Valve

316L Stainless Steel Body Construction.
EPDM Body and Seat gasket.
10 bar pressure rated. -20 / + 130 deg C Temp rated.
Plain Butt Weld End connections to BS4825 Imperial.
Clamp together body.

This valve is designed primarily for use on Food, Beverage and Dairy applications.
The clamp together body construction allows easy access for cleaning and maintenance.

The valve comes with Plain O/D Imperial Weld Ends to BS4825 as standard. RJT, IDF, SMS, DIN and Clamp Ends are optional extras.

1/2” & 3/4” sizes are available on special order.
Please ask our sales office for details.

Available size range: 1” - 4”

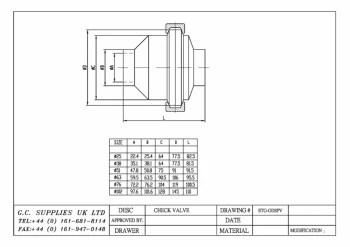

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

Hygienic/Sanitary Plain Weld End Spring Check Valve ETG ODSPV Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
