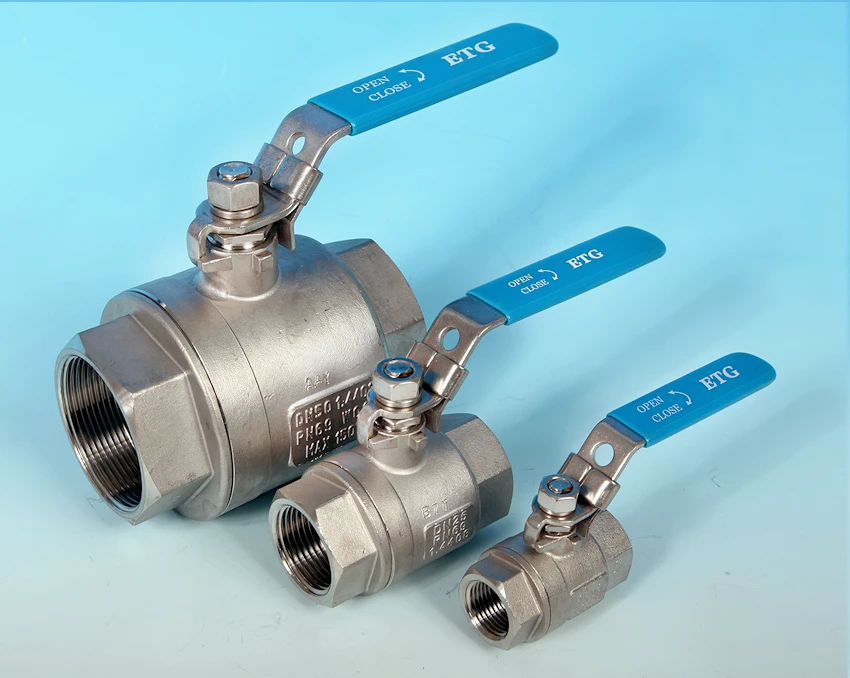

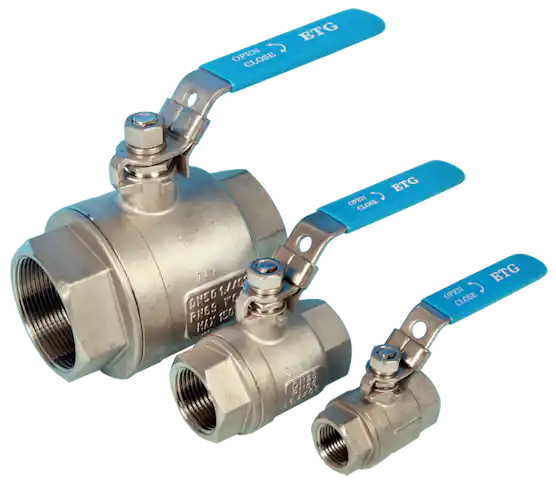

2-Pce Full Bore Ball Valve lever operated
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Adjustable gland. Slide type Locking Lever.
1000 psi/g Pressure rated. -20 / + 180 Deg C Temperature rated.
Pressure balance hole in Ball Slot.
BSP and NPT Screwed end connections available.
CE marked (sizes 1 1/4” upward) in accordance with the PED 97/23/EC.
A good quality, general purpose ball valve suitable for most Liquid and Gaseous duties. Ball can be drilled for upstream vent applications such as bleach and peroxide duties.
Full material Test Certificates available
Test standard – API 598
BSP Ends - ISO 7-1
NPT Ends - ASME B1.20.1
Available size range: 1/4” - 4”

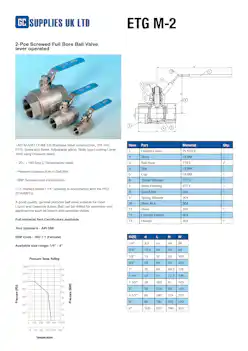

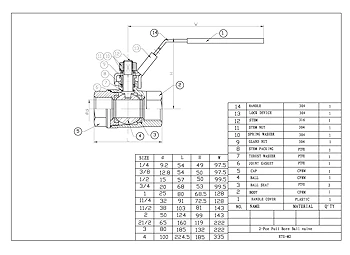

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
