3-way ball valves

ETG 3WCF/C-L (L-Port)
ETG W3CF/C-T (T-Port)

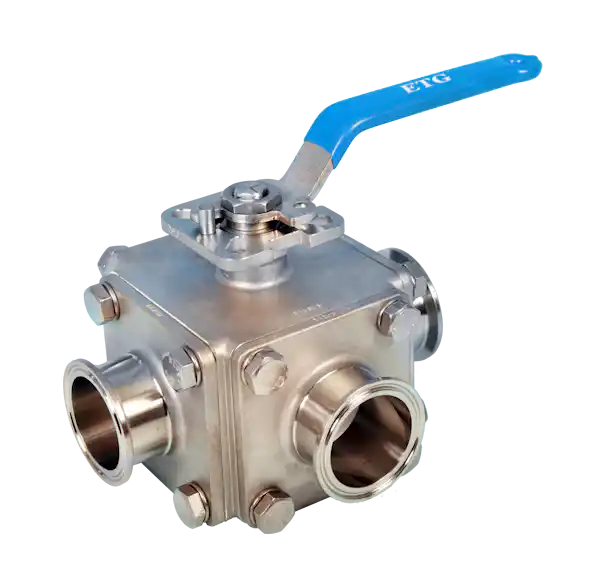

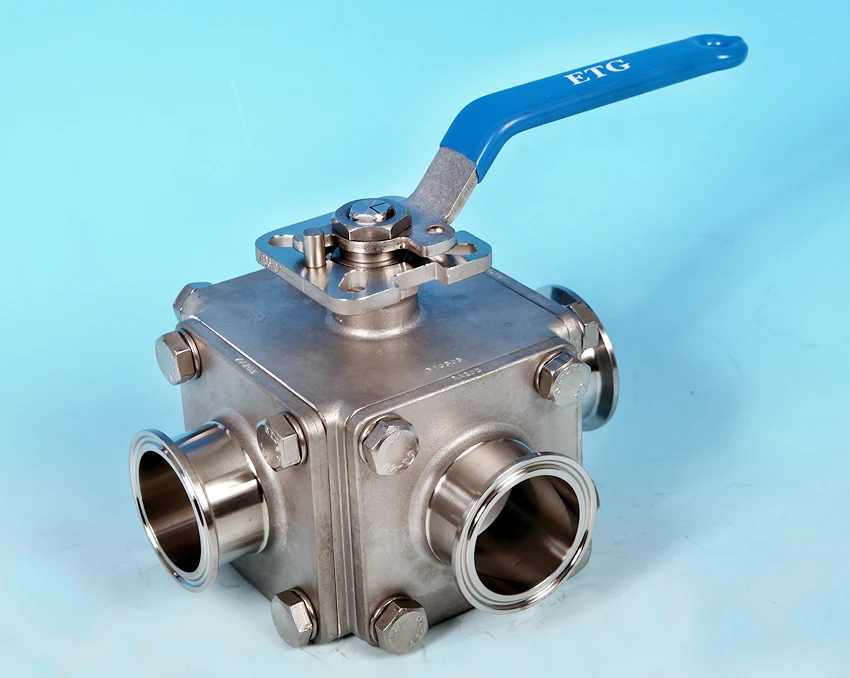

3-Way Sanitary Weld End Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
Virgin PTFE Seals and Cavity Filled Ball Seats. L-Port and T-Port configurations.
ISO 5211 Direct Mounting Pad and Square Stem for easy automation.
Lockable Lever. Mirror Polished Bore. Ends to suit Imperial O/D Tube.
Valves are Full Bore and are therefore suitable for use on Pigged pipework.

Options available:

100mm high Spindle Extension for Insulation & Actuation

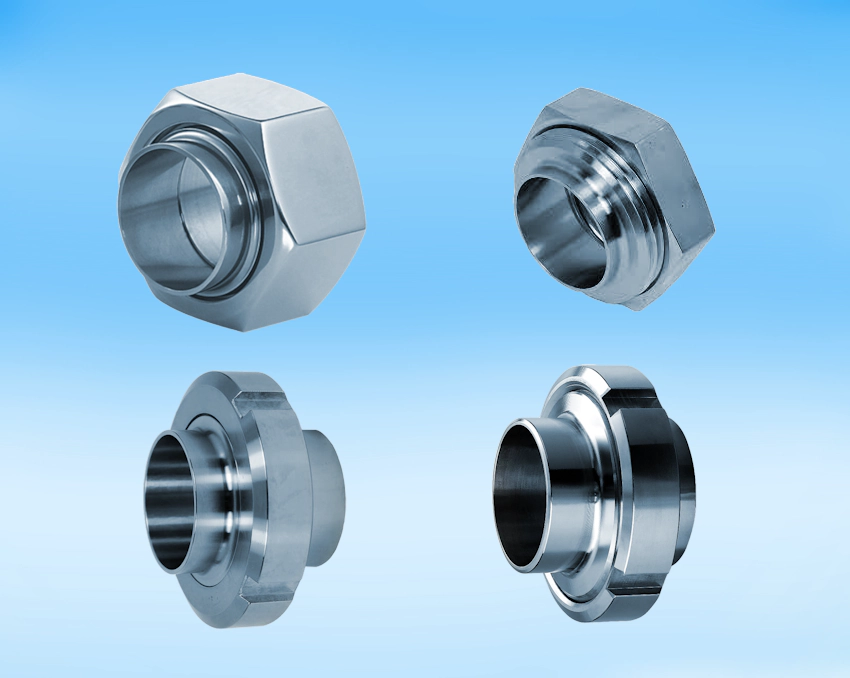

RJT, DIN, 3A, SMS and IDF end connections can be supplied on short lead times.
T-Clamp ends available as standard (sizes 1” -2”), see ETG 3WCF/C-T (T-Port).

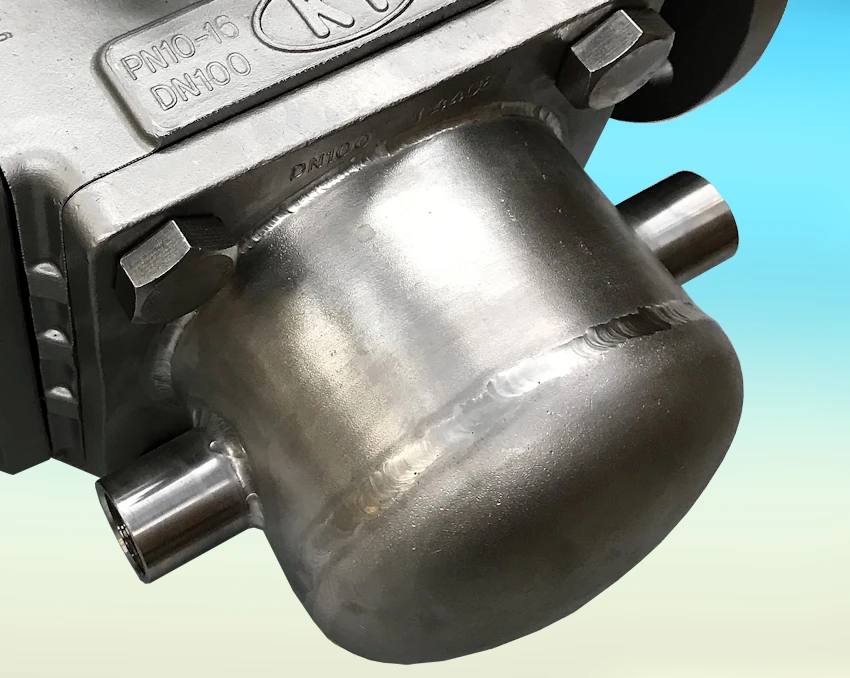

Heating Jacket can be fitted to base of valve only.

Available size range: 1/2” - 4”

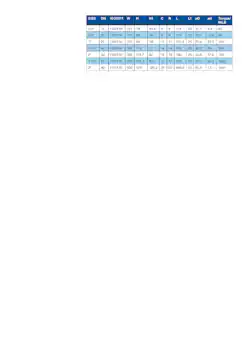

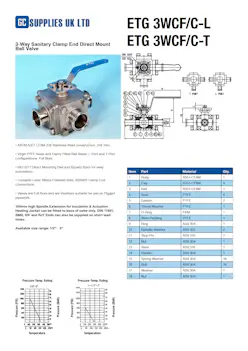

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

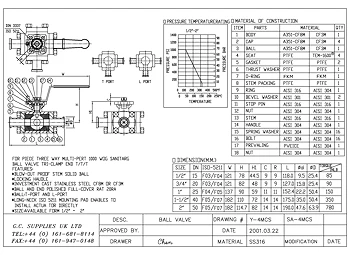

3-Way Sanitary Clamp End Direct Mount Ball Valve ETG 3WCF/C-L, ETG W3CF/C-TEnlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE
