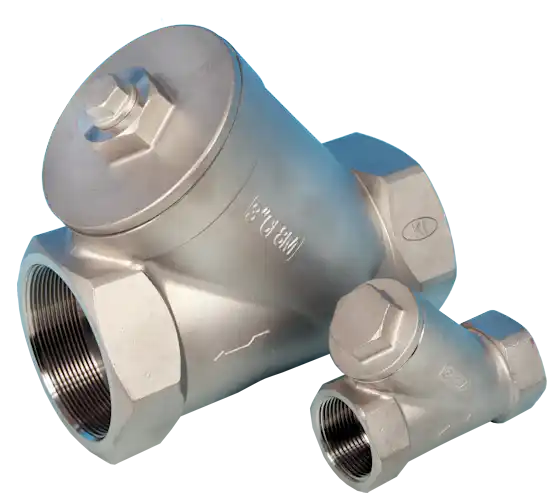

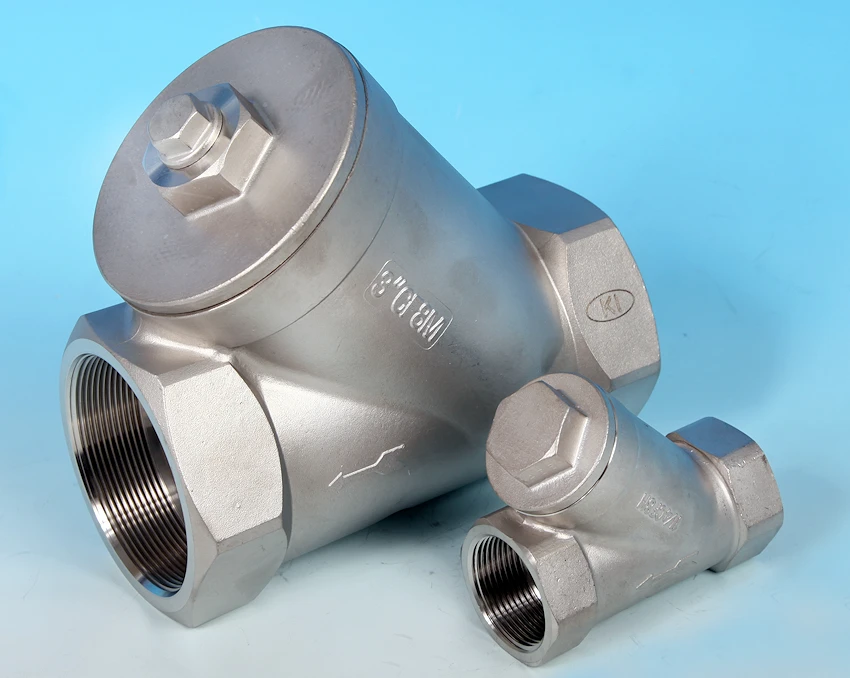

Screwed Y-Type Strainer
ASTM A351 CF8M 316 Stainless Steel Body and End Cap.
PTFE Cap Seal. 316 Stainless Steel Filter Element.
1mm Perforated Screen x 2mm pitch with 80 mesh inner lining.
800 psi pressure rated.
-25 / +200 deg C Temp rated.
BSP and NPT screwed end connections.
CE marked in accordance with PED 97/23/EC (from 1 1/4”).
A good all round general purpose Y-Type Strainer.
High quality, heavy duty cast Stainless Steel Body.
This valve is pressure rated to 800 psi rather than the usual 600 psi available elsewhere.
NPT screwed ends are stocked in sizes 1”, 1 1/2” and 2” only.
Other sizes available on special order from factory.
Available size range: 1/4” - 3”

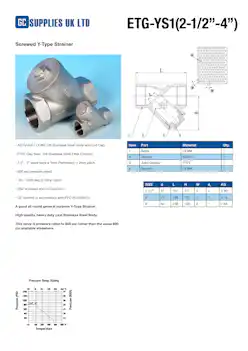

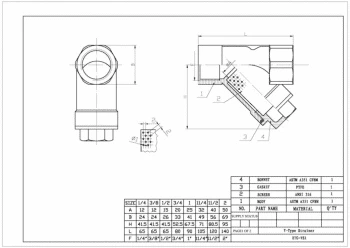

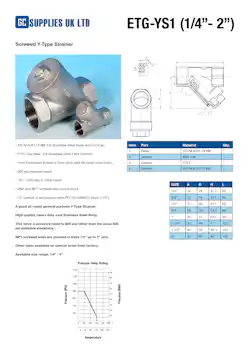

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
