NTC KV-L91/B BS4825 Weld Ends

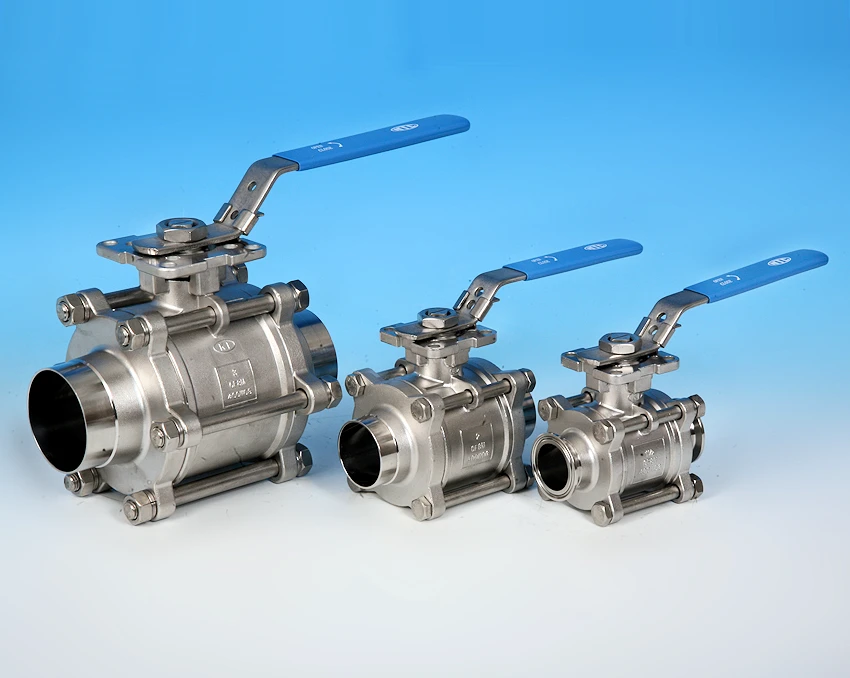

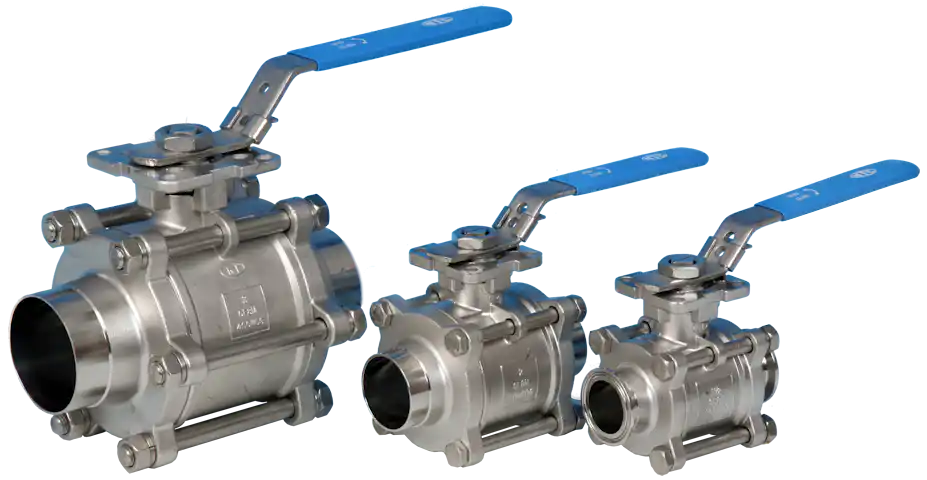

3-Pce Full Bore Hygienic/Sanitary Cavity Filled Direct Mount Ball Valve with Weld Ends

ASTM A351 CF8M 316 Stainless Steel body construction, CF3M 316L Weld Ends, 316 Trim.

TFM 1600® Cavity Filled Seats and Seals.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
400 psi/g pressure rated.
Chemically polished external surface, Mechanical polish Ra 32 / 0.8um Internal.

Suitable for Clean Steam and Steam Sterilisation duties up to 200 Deg C

Silicone Free. Valve is suitable for use on Oil based Paints.

Certified as being non-Bovine and TSE (Transmissible Spongiform Encephalopathy) Free for all manufacturing and packaging processes

Options available:

100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
DIN 11851, IDF, SMS, ACME (3A) and RJT Male and Female Ends (Clamp Ends also as standard see KV-L9C/B)

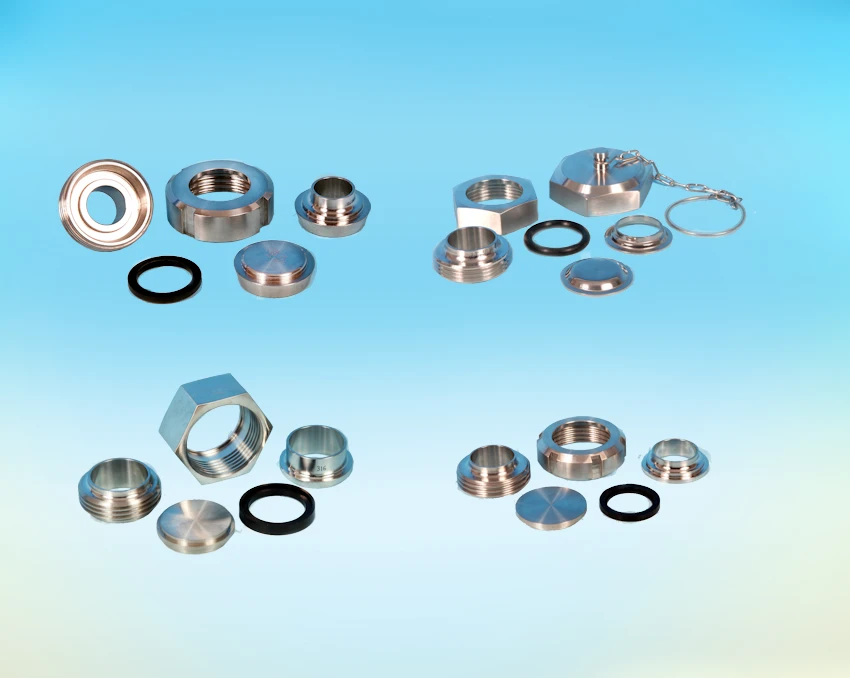

Mating Union Parts and Seals available from stock
Standard seat material (TFM 1600®) is 3A, FDA and WRAS certified

Design Rating: MSS SP-110, BS4825
Inspection & Testing: MSS SP-110

End connections: BS4825 1.6mm (2mm @ 4")

Available size range: 1/2” O/D - 4” O/D

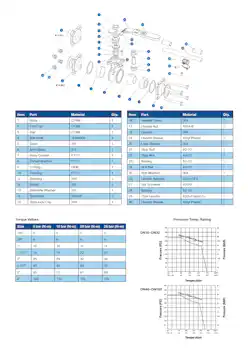

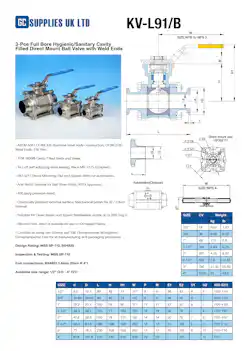

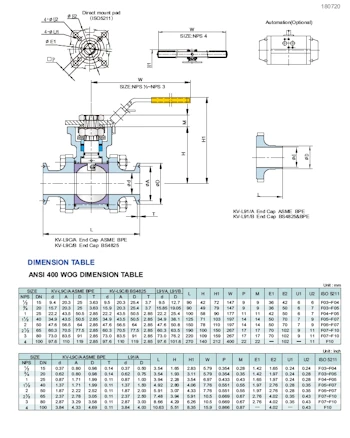

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

3-Pce Full Bore Sanitary Cavity Filled Direct Mount Ball Valve NTC KV-L91/B Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE



For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
