manways

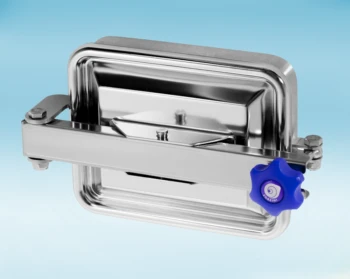

Model 295/B 316L

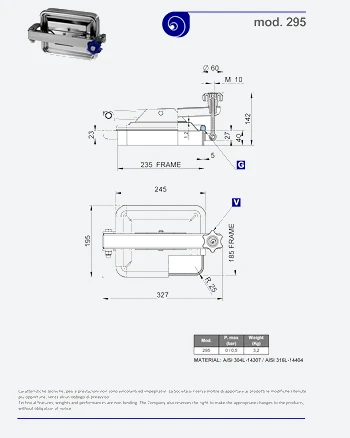

235 × 185mm Rectangular Pressure Manway



316L Stainless Steel construction. EPDM Seal. 40mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/295 and Nylon Handwheel MEC/60/A.
0.5 bar/g Max Pressure

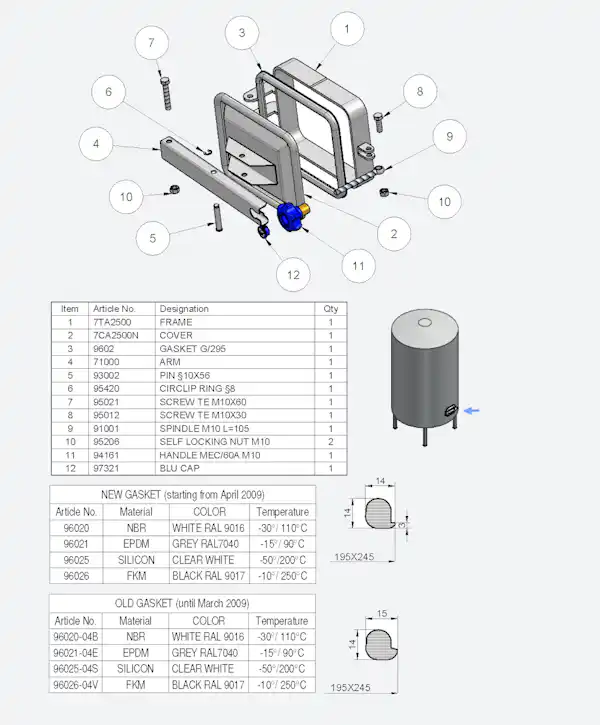

Exploded View

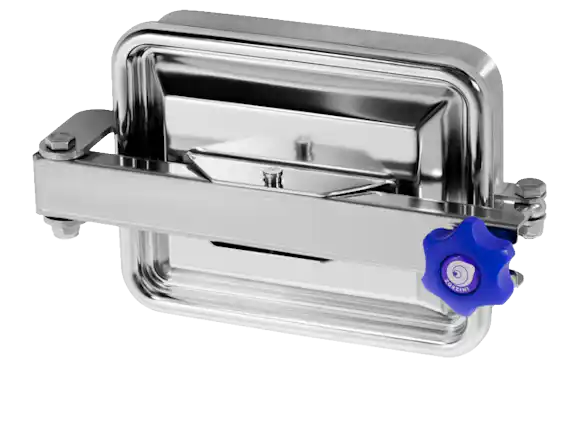

Stainless Steel 235 × 185mm Rectangular Pressure Manway 295/B 316L
