3-way ball valves
ETG F3WL-150 (L-Port)
ETG F3WT-150 (T-Port)
3-Way Flanged ANSI 150lb Full Bore Ball Valve
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
PTFE Seats and Seals. Single piece Ball and Stem, semi trunnion.
ISO 5211 Mounting Pad (non-direct mount). Adjustable Gland.
Cast Iron Lever with locking device.
Available in both L-Port and T-Port configurations.
The characterising features of this valve are it's semi-trunnion design and only having three ball seats rather than four. These design concepts determine extremely low operating torques therefore major savings can be found in terms of valve automation costs as well as ease of manual operation negating the need for a Gear-Box operator.
Heating Jacket can be fitted to base of valve only.
Available size range: 1” - 6” (6" is the PN16 version of this valve)

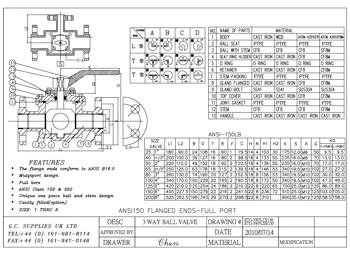

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
