manways

Model 160 304L

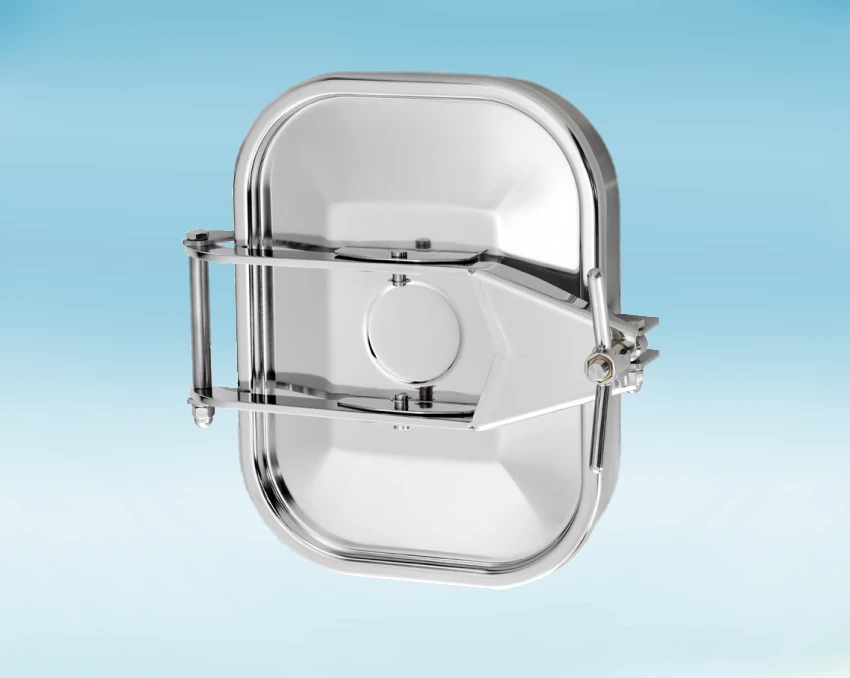

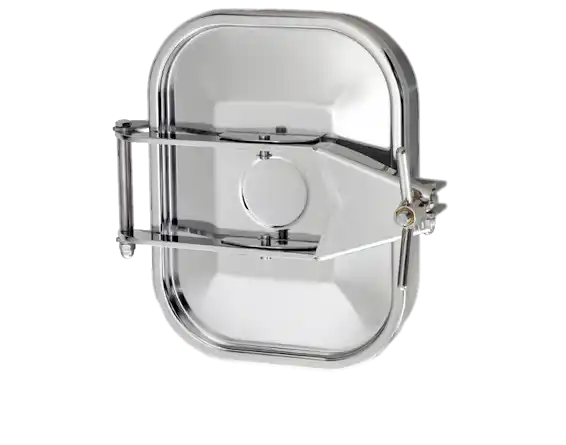

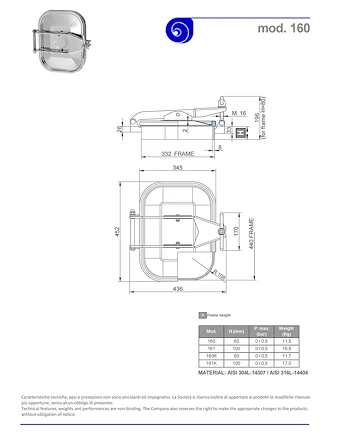

332 × 440mm Rectangular Pressure Manway



304L Stainless Steel construction. EPDM Seal. 60mm high neck.
Opening outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/R165 and S.S. Handle V/I/165/A.
0.5 bar/g Max Pressure

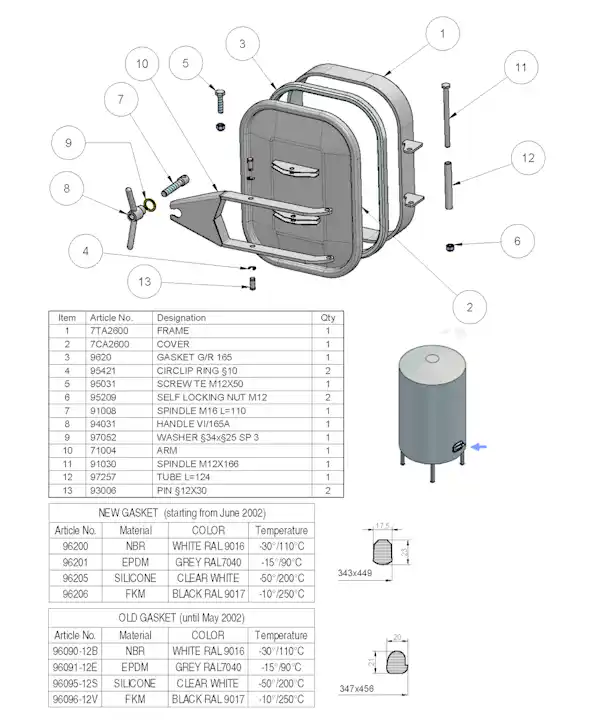

Exploded View

Stainless Steel 332 × 440mm Rectangular Pressure Manway 160 304L
