manways

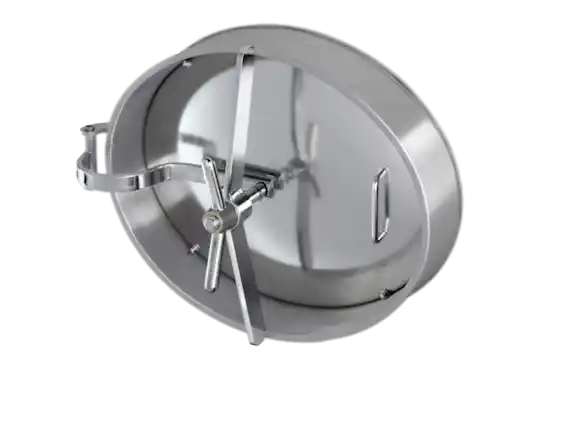

Model 201/LZD 304L

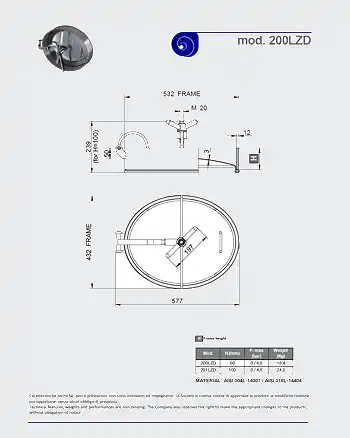

532 x 432mm Oval Pressure Manway



304L Stainless Steel construction. EPDM Seal. 100mm high neck.
Opening inwards and outwards.
Gasket on cover not glued.
Standard with EPDM Gasket G/200/LZD and S.S. Handwheel V/I/190.
4.8 bar/g Max Pressure
PED Certified (*)

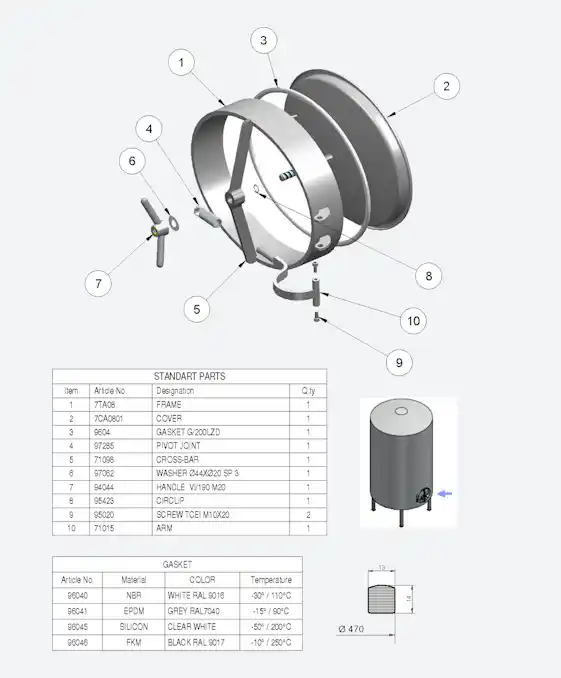

Exploded View

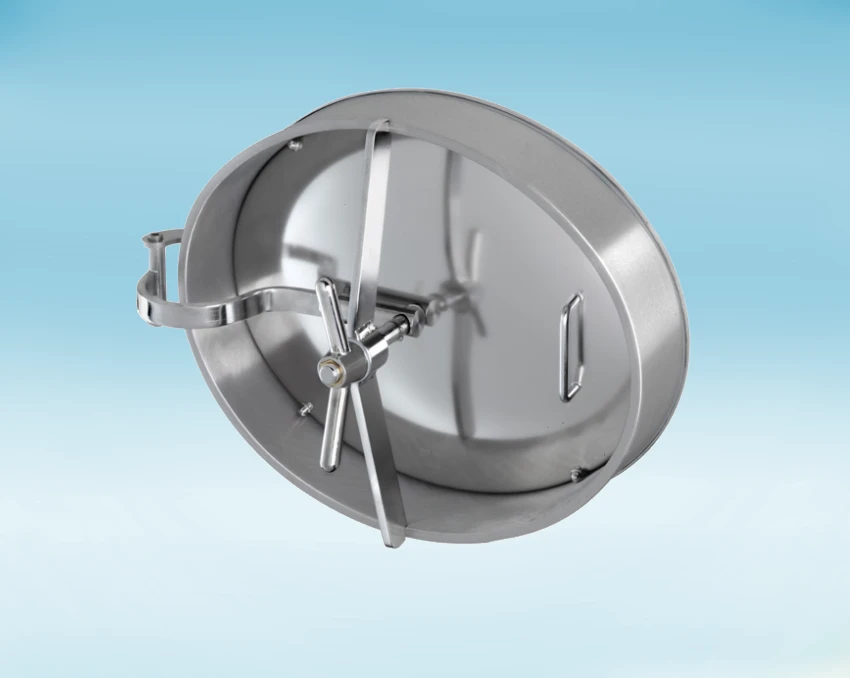

Stainless Steel 532 x 432mm Oval Pressure Manway 201/LZD 304L



In the event that you can't find the correct manway or you are looking for accessories, then please visit the Zorzini website to see the complete range. We would be happy to provide you with a quote and a lead time on any of the products there.
