high performance valves

NTC KV-L20H

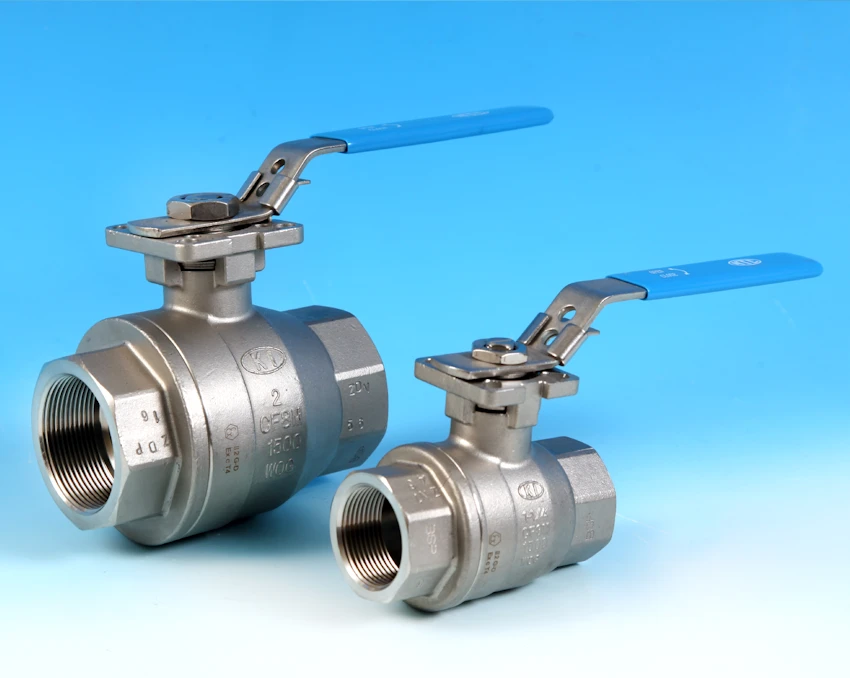

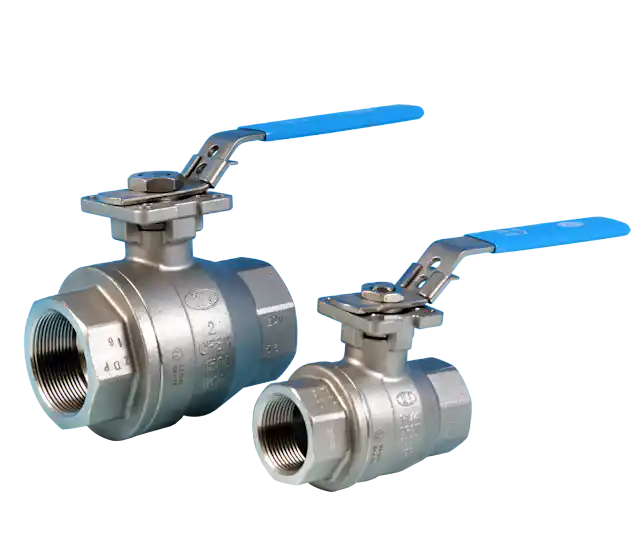

2-Pce Full Bore Fire Safe Heavy Duty Direct Mount Ball Valve

ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 4215® Ball Seats with Grafoil Body and Stem Seals.
Ta-Luft self adjusting stem.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
Nace MR-0175 compliant.

A cost effective valve suitable for Steam and High Temperature media.

Class 800 (2000 psi) pressure rated 1/2” - 1”
Class 600 (1500 psi) 1 1/4” - 3”
Silicone Free. Valve suitable for use on Oil based Paints.

BSP Ends - BSPP ISO 228/1

TFM 4215® is an FDA & WRAS certified material.

Silicone Free. Valve suitable for use on Oil based Paints.

Options available:

100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever

Upstream Ball and Cavity Relief hole drilled into Ball

Design Standard: MSS SP-110
Wall Thickness: EN 12516-3 Class 800 (1/2" - 1") & 600 (1 1/4" - 3")
Inspection & Testing: MSS SP-110

Available size range: 1/2” - 3”

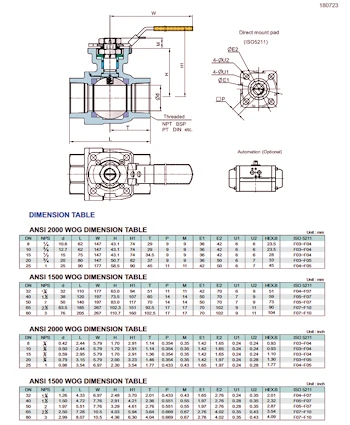

Drawings:

Download file Print View View Full Screen Get 7z Get Acrobat Reader

2-Pce Full Bore Fire Safe Heavy Duty Direct Mount Ball Valve Enlarge

Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.

Problems opening the Print Version? Click HERE

For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
