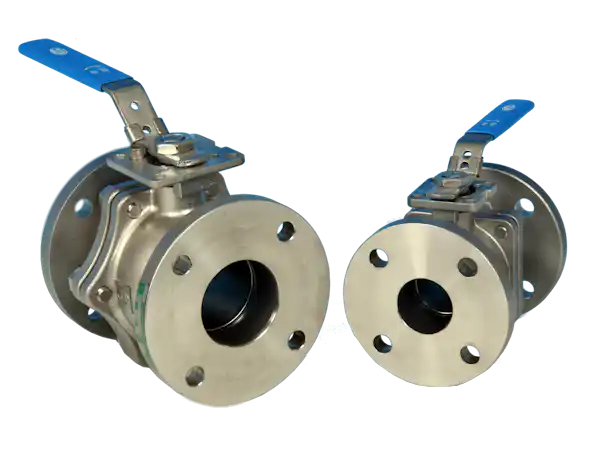

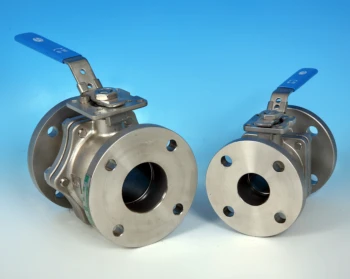

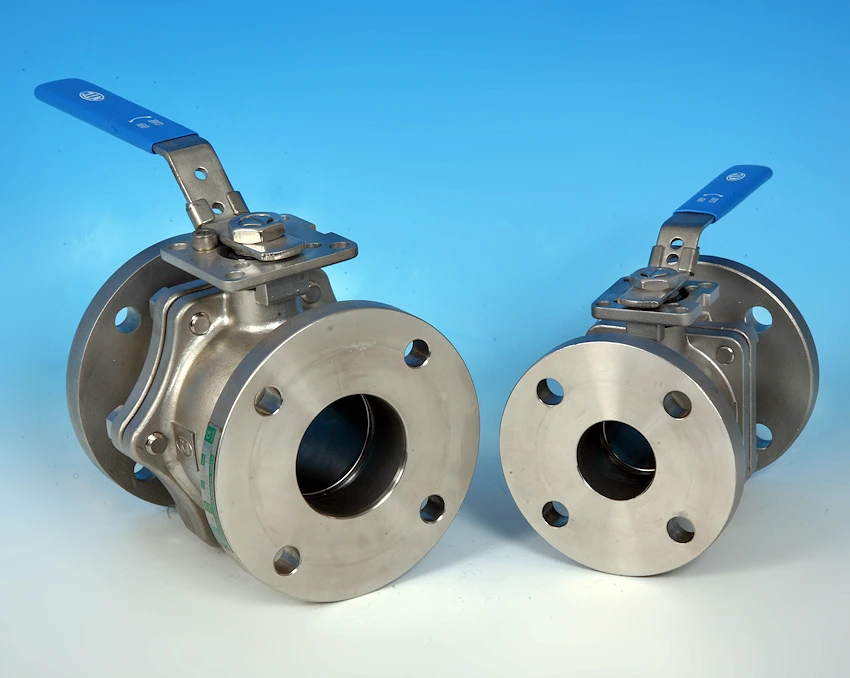

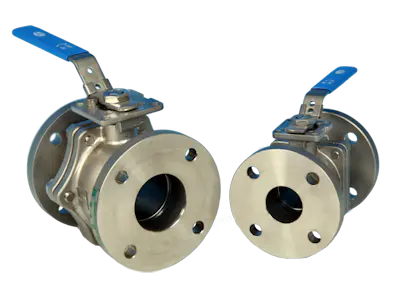

2-Pce Full Bore Flanged BS10 Table E Direct Mount Ball Valve
Firesafe Design and Construction, certified API 607 5th Ed 2005, ISO 10497-5.
ASTM A351 CF8M 316 Stainless Steel construction, 316 Trim.
TFM 1600® Ball Seats. Grafoil Body Seals and Stem packing.
Ta-Luft self adjusting stem sealing. Nace MR-0175 compliant.
ISO 5211 Direct Mounting Pad and Square Stem for automation.
Anti-Static devices for Ball-Stem-Body. ATEX approved.
TFM 1600® is an FDA & WRAS certified material.
Silicone Free. Valve suitable for use on Oil based Paints.
50% S/S Filled, TFM 4215® (25% Carbon Filled TFM) & UHMWPE Ball Seats
30, 60 and 90 Deg V-Ball for modulation duties.
100mm high Spindle Extension for Insulation & Steam Actuation
Direct Mount Spring Handle/Lever
Fabricated Heating Jacket
Upstream Ball and Cavity Relief hole drilled into Ball
Design Standard: ASME B16.34, API 608
Wall Thickness: ASME B16.34
Inspection & Testing: API 598, API 6D
Face to face dimension: ASME B16.10
Available sizes: 1", 1 1/2", 2”, 3" and 4” only
Download the drawing, select to view a print friendly (Portrait) version of the drawing or view a (landscape) full screen version. You will need to unzip the file and use a PDF reader, we recommend 7z which is free. For the PDF version then you will need a programme such as Adobe Reader, also free to download. See links above.
Problems opening the Print Version? Click HERE
For full details of our NTC High Performance Range, technical data, product images and more, visit http://ntcvalves.co.uk
